Electronic/Electrical Parts and Controll Equipments

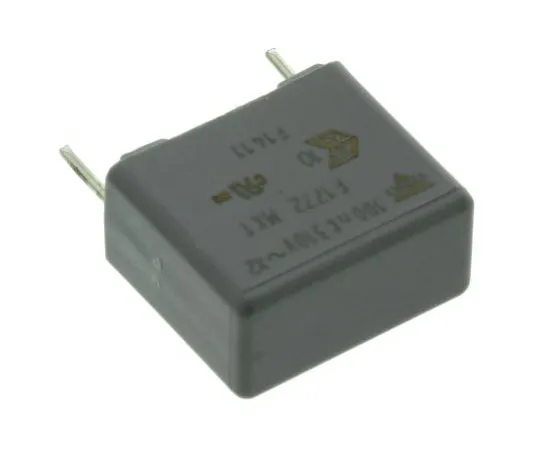

63-7430-97 Vishay 100nF Polyester Film Capacitor 310V ac ±10% F1772 Series Through Hole F17724102000
Product Description
Product Model: 63-7430-97Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7430-97
Product Brand: Vishay
Features
- (EN 132400) CEI 384-14 iss. 2 Ongoing qualifications, VDE 0565-1 class X2, SEV 1055 1978, DEMKO CEI 384-14 1981, SEMKO CEI 384-14 1981, NEMKO CEI 384-14 1981, FIMKO CEI 384-14 1981, UL 1283/UL 1414 (up to 1 μF), CSA 222 No.8-M 1986, IMQ CEI 40-7/V1-1981, ÖVE CEI 384-14 1981. X2 class anti-interference capacitors, series F1772-2000 310 V ac. Metallised film capacitors for interference suppression installed between phases or between phase and neutral Epoxy resin-sealed, flame-retardant case
Spec
- Quantity:1bag(10pieces)
- Capacitance : 100nF
- Voltage : 310V ac
- Mounting Type : Through Hole
- Lead Pitch : 15mm
- Series : F1772
- Tolerance : ±10%
- Dielectric : PET
- Length : 17.5mm
- Depth : 8.5mm
- Height : 15mm
- Dimensions : 8.5 x 15 x 17.5mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +110°C
- Lead Diameter : 0.8mm
- CODE No.:220-7786
