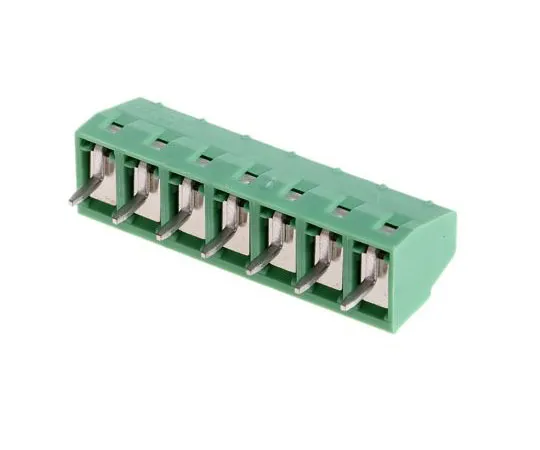

63-7430-74 Phoenix Contact COMBICON MKDS, 7 Way PCB Terminal Strip 1727065
model:
63-7430-74
brand:
Phoenix Contact
Product Description
Product Model: 63-7430-74Product Brand: Phoenix Contact […]
Contact Us
Product Details
Product Model: 63-7430-74
Product Brand: Phoenix Contact
Features
- UL (E60425), CSA (LR13631). Phoenix Contact COMBICON MKDS 3.81mm PCB Terminal Blocks. COMBICON MKDS PCB terminal blocks are small and compact in design. Features and Benefits. Robust moving cage principle accepts wires up to 1.5 mm² (1.0 mm² stranded) Reliable strain relief due to separate solder pin and terminal sleeve Rated at 200 V/12 A Polyamide 6.6 Krilen UL94V0
Spec
- Quantity:1bag(5pieces)
- Number of Contacts : 7
- Pitch : 3.81mm
- Number of Rows : 1
- Mounting Type : Through Hole
- Termination Method : Screw
- Type : PCB Terminal Block
- Current Rating : 12A
- Body Orientation : Straight
- Voltage Rating : 300 V
- Series : COMBICON MKDS
- Width : 8.5mm
- CODE No.:220-4383
