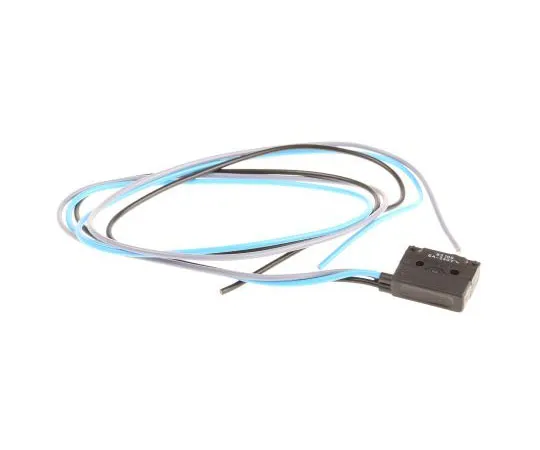

63-7430-16 SPDT-NO/NC Button Microswitch, 6 A @ 250 V ac 83 186 003
Product Description
Product Model: 63-7430-16Product Brand: Crouzet Feature […]
Contact Us
Product Details
Product Model: 63-7430-16
Product Brand: Crouzet
Features
- UL, CSA, VDE. Items come without cables and feature quick connect terminals only. Sealed miniswitches, V4 type (1). Sealed V4 type miniswitches for soldering onto wires or for 2.8 mm clips. Choice of operation accessories (supplied separately): flat levers and roller levers.
Spec
- Quantity:1piece
- Actuator Type : Button
- Terminal Type : Solder
- Contact Current Rating : 6 A @ 250 V ac
- Contact Configuration : SPDT-NO/NC
- IP Rating : IP67
- Operating Force : 2.5 N
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +125°C
- Mechanical Life : 2000000Operations
- Release Force : 0.8N
- Operating Temperature Range : -40 → +125°C
- CODE No.:219-3794
