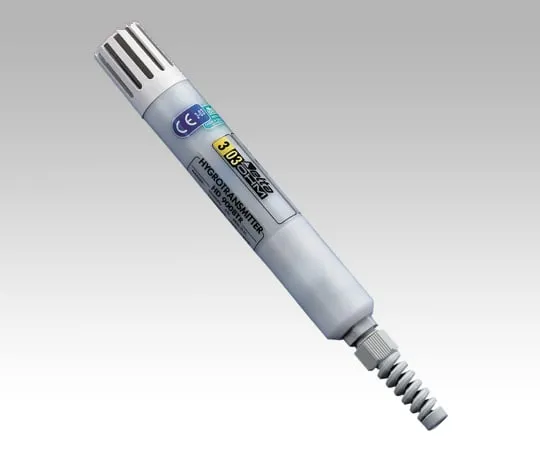

1-3746-01 Thermo-Hygro Transmitter HD9008TRR
model:
1-3746-01
category:
toner
Product Description
Product Model: 1-3746-01 Features It is microprocessor- […]
Contact Us
Product Details
Product Model: 1-3746-01
Features
- It is microprocessor-controll.
- Tip portion of its case is equipped with sensor.
- Calibration and scaling can be operated by its key.
- When using transmitter outdoors, the protection food （separate sale） protects it from ultraviolet rays and wind and rain.
Spec
- Model number: HD9008TRR
- 4 - 20mA output type
- Measuring method: Temperature/Pt100Ω sensor 100Ω, Humidity/capacitance type
- Measurement range: Temperature/-40 to +80℃, Humidity/5 - 98%RH
- Accuracy: Temperature/+/- 0.25℃, Humidity (at 20℃)/+/- 2% (5 - 90%RH), +/- 2.5% (other)
- Power supply: 10 - 40VDC (4 - 20mA))
- Cable length (MAX): 200m
- Size: φ26 x 225mm
