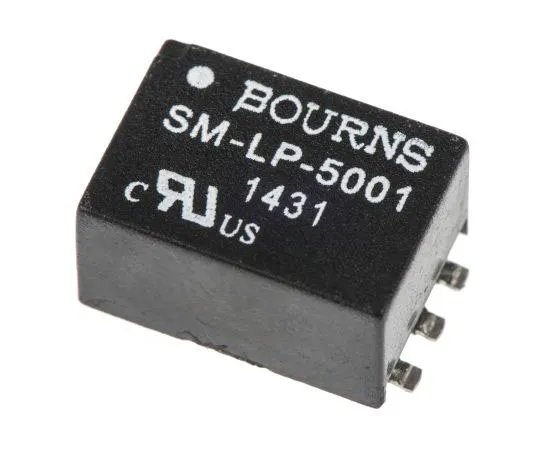

63-7429-68 1:1 Surface Mount Telecom Transformer, 3.8H SM-LP-5001
Product Description
Product Model: 63-7429-68Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-7429-68
Product Brand: Bourns
Features
- Bourns SM-LP-5001 Series Surface Mount Line Matching Transformers. SM-LP-5001 line matching transformers from Bourns are a subminiature solution, with a seated height of only 7.5 mm. These line matching transformers are vacuum encapsulated and have low distortion of only 0.015%. 600 Ω nominal impedance 80 dB minimum balance -76 dB maximum distortion at 600 Hz 2000 Vrms dielectric strength for 1 minute. Product Application Information. Suitable applications for these line matching transformers include instrumentation, telecommunications, laptops and modems (V32).
Spec
- Quantity:1bag(53pieces)
- Primary Inductance : 3.8H
- Insertion Loss : 2dB
- Turns Ratio : 1:1
- Mounting Type : Surface Mount
- Leakage Inductance : 6mH
- Dimensions : 9.6 x 7.36 x 14mm
- Depth : 14mm
- Length : 9.6mm
- Width : 7.36mm
- Maximum Operating Frequency : 4kHz
- Minimum Operating Frequency : 0.2kHz
- Minimum Temperature : -20°C
- CODE No.:172-8671
