Features

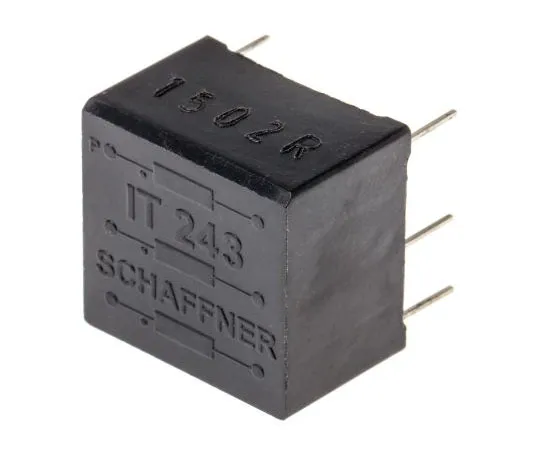

• Pulse transformers IT Series. Schaffner's IT pulse transformers are designed to offer you galvanic isolation for transformer coupled gate drives. The IT series provides negligible delays and the possibility of voltage scaling. They are available with single or double secondary winding for multiple gate drives. Choosing the IT product line brings you the rapid availability of a standard gate drive transformer. A wide selection on turns ratio, ignition current and voltages are designed to offer you the desired standard product. Galvanic separation Voltage resistance up to 8 kV Allows high potential difference voltage scaling Optional grounded shields Vacuum potting Very low partial discharge effects PCB through hole mounting or faston types
