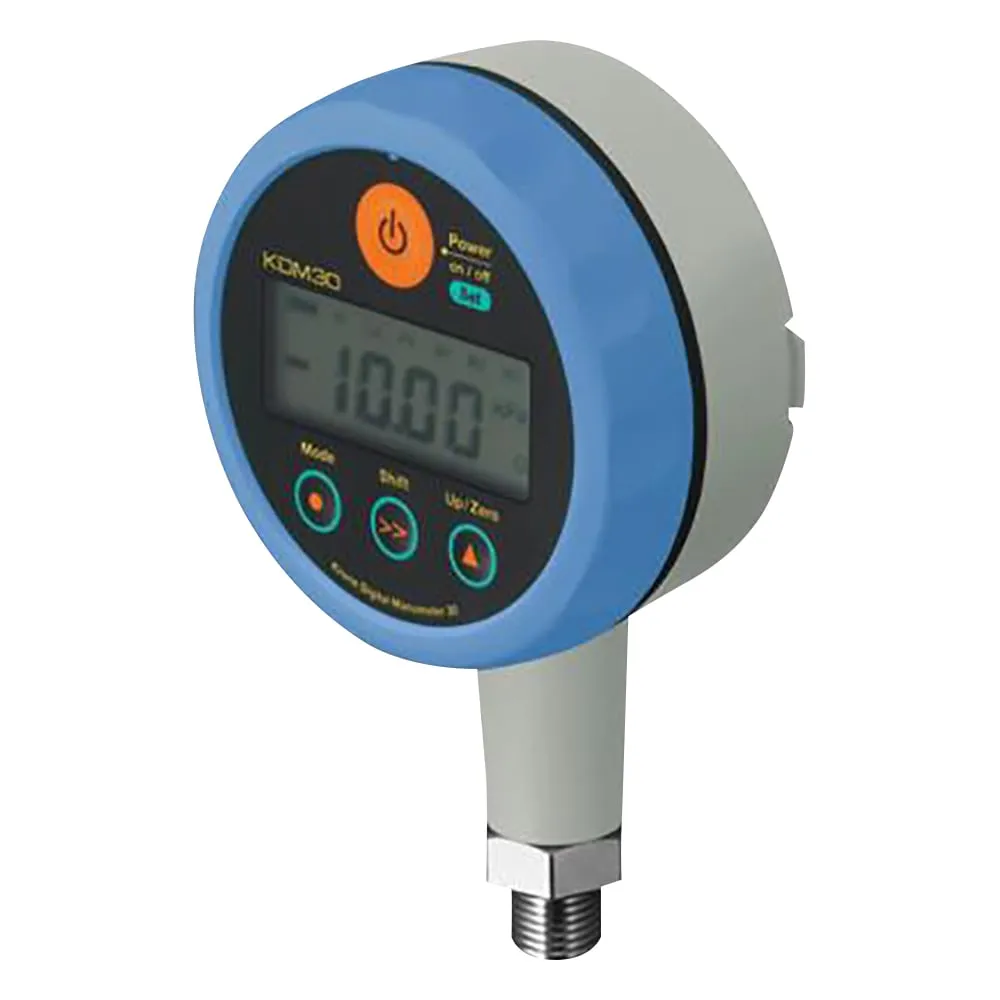

1-3558-02 High Precision Digital Pressure Indicator KDM30-1MPaG-E-Bl KDM30-1MPaG-M-BL
model:
1-3558-02
category:
toner
Product Description
Product Model: 1-3558-02 Features Flexible display inde […]
Contact Us
Product Details
Product Model: 1-3558-02
Features
- Flexible display indep***ent of mounting position.
- A flexible display that rotates both the swing and display angle by 330°.
Spec
- Measuring range: 0 ~ 1.000 MPaG
- Power supply: 24 VDC (external power supply)
- Power: 4 ~ 20 mA, Warning HI/GO/LO/NPN
- Measuring fluids: Gases and liquids (fluids that do not corrode SUS 316 L)
- Accuracy: +/- 0.25% FS +/- 1 deg (including linearity, hysteresis and reproducibility)
- Features: Sampling time/Display rate/Rate average count selection/Peak/Valley-hold zero point correction/Auto power off
- Materials: Gas and Wetted Parts/Stainless Steel (SUS 316 L), O-Ring/NBR (Nitrile Rubber), Case/ABS Resin
- Connection screw size: G 1/4
- Size: 80 x 48 x 128.5 mm
- Weight: approx. 180 g (battery included)
- With connection cable (1 m)
- Color: Blue
- *Waterproof and dustproof covers (sold separately) and Bluetooth ® communication type are also available (communication distance: about 8 meters without obstructions). Please inquire.
- *There are also high-pressure models with a measurement range of 0 ~ 70 MPaG. Please inquire.
