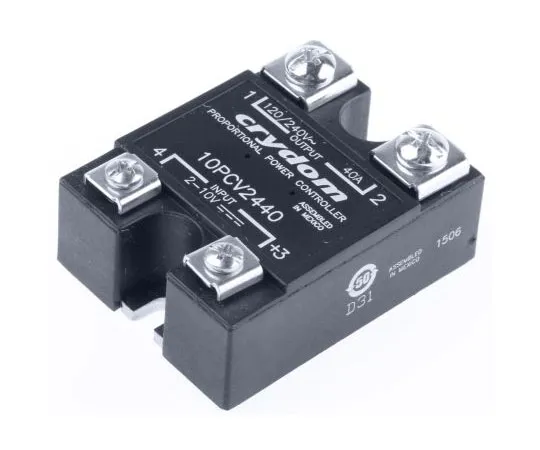

63-7429-44 Sensata / Crydom 40 A rms Solid State Relay, PCB Mount, SCR, 240 V ac Maximum Load 10PCV2440
model:
63-7429-44
brand:
Sensata / Crydom
Product Description
Product Model: 63-7429-44Product Brand: Sensata / Crydo […]
Contact Us
Product Details
Product Model: 63-7429-44
Product Brand: Sensata / Crydom
Features
- Crydom PCV Series Proportional Power Controllers. Proportional power controllers in the SSR industry standard rectangular "hockey puck" package. Using a simple 2-10Vd.c. power source, voltages of up to 240Va.c. and currents of up to 40A are able to be easily and efficiently controlled. Typical applications include; resistive heating elements, rectified d.c. motors, industrial temperature control, conveyor speed control, light dimming, infrared and quartz heaters. Internal snubbers as standard Control circuit requires no calibration 2-10Vd.c. logic compatible input
Spec
- Quantity:1piece
- Minimum Load Current : 0.05 A rms
- Maximum Load Current : 40 A rms
- Mounting Type : PCB Mount
- Minimum Load Voltage : 100 V ac
- Maximum Load Voltage : 240 V ac
- Minimum Control Voltage : 2 V dc
- Maximum Control Voltage : 10 V dc
- Output Device : SCR
- Maximum Turn On Time : 8 ms
- Dimensions : 45.7 x 58.4 x 22.9mm
- Off State Leakage Current : 20 mA
- CODE No.:218-1892
