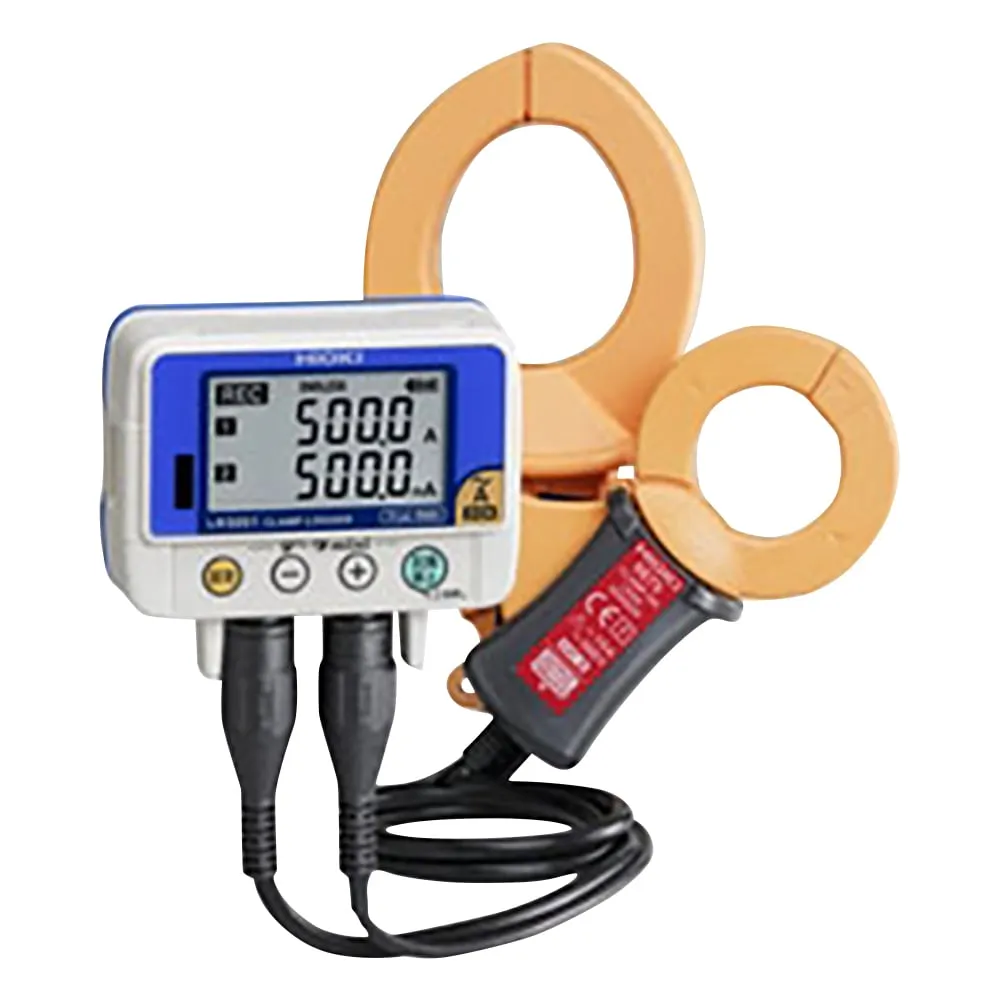

1-3452-02 Clamp Logger (Data Mini) LR5051
Product Description
Product Model: 1-3452-02Product Brand: HIOKI E. E. CORP […]
Contact Us
Product Details
Product Model: 1-3452-02
Product Brand: HIOKI E. E. CORPORATION
Features
- By entering the statistics recording mode, you can record instantaneous/MAX/MIN/AVE values for each set recording interval (2 seconds to 60 minutes).
- The battery is continuously measured for 30 seconds even if the battery is removed, so you can change the battery while measuring.
- By using the data collector (sold separately), you can transfer data to a computer while the instrument is installed at the measurement location.
Spec
- Model number: LR5051
- Clamp logger
- Size (mm): 79 x 37 x 70
- Measurement range: 0 - 50A/500A (when using CT6500), 0 - 500mA/5A (when using 9657-10, 9675)
- Accuracy: ±0.5%rdg + 0.5dgt + sensor accuracy
- Recording capacity: Instantaneous value/60,000 data, Statistic value/15,000 Data
- Recording interval: 1, 2, 5, 10, 15, 20, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 60 minutes
- Weight: 165
- Power supply: AA alkaline dry cell x 2 pieces (included)
- *Various clamp sensors are not included in the package. *Communication adapter (optional) or data collector (optional) is required for data transfer to PC.
