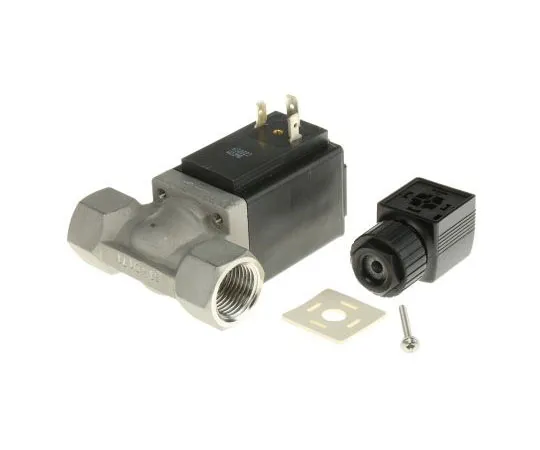

63-7428-50 Burkert Solenoid Valve 049053, 2 port , NC, 110 V ac, 1/2in 49053
Product Description
Product Model: 63-7428-50Product Brand: Burkert Feature […]
Contact Us
Product Details
Product Model: 63-7428-50
Product Brand: Burkert
Features
- Series 290 Two-way Solenoid Valves. Zero head pressure capability Comprehensive range of port sizes BSP parallel ports suitable for *** with compression fittings 3 Pin DIN connector rated at IP65 can be positioned through 360° in 90° increments WRC Approved (brass body only) For *** with domestic water supplies and neutral (oil-free) fluids and gasses 0 - 16 bar pressure range Power consumption 100-120VA (Inrush AC), 25VA/12W (Hold AC/DC); 80W (Inrush), 6W (Hold) Ambient Temperature +55°C maximum
Spec
- Quantity:1piece
- Supply Voltage : 110 V ac
- Number of Ports : 2
- Operation : Pilot
- Connection : 1/2 in G Female
- Connection Size : 1/2in
- Default Valve Position : NC
- Suitable Applications : Gas, Liquid
- Type : 2/2
- Orifice Diameter : 12mm
- Body Material : Stainless Steel
- Maximum Working Pressure : 16 bar
- Operating Temperature Range : -30 → +55 °C
- Minimum Operating Temperature : -30°C
- Maximum Operating Temperature : +55°C
- Servo Assist : Yes
- CODE No.:215-7805
