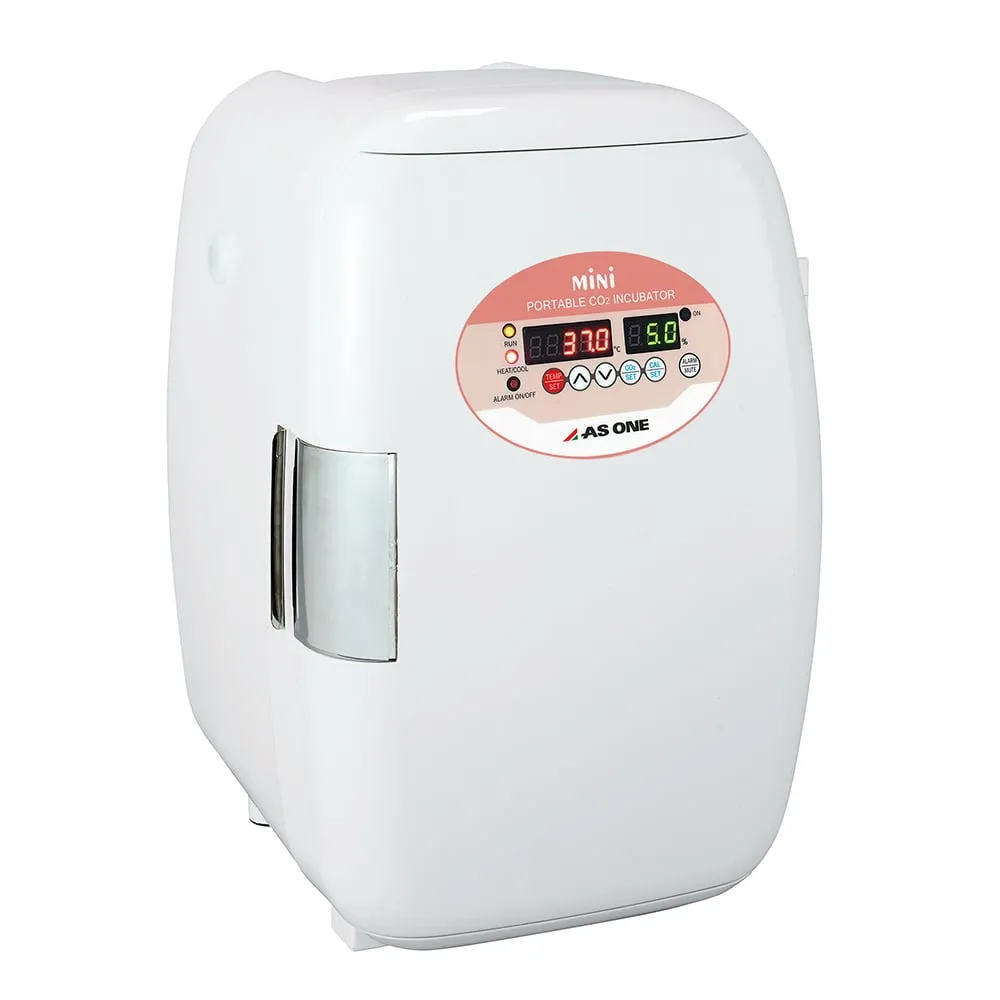

Spec

• Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
• Validate (FAT) before shipping.
• After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
• App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
• *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
• Temperature point: 1 point of 37 degrees Celsius, CO2 concentration
• External dimensions (mm): 300 W x 345 D x 436 H * Including projections
• Inside chamber dimensions: 224 x 200 x 340 mm
• Chamber capacity: 16 L
• Controlled temperature range: 15 ~ 45 degrees Celsius (every 0.1 degrees Celsius)
• Temperature accuracy: Labeling system: +/- 0.25 degrees Celsius (at 37.0 degrees Celsius, when ambient temperature is 25 degrees Celsius)
• Control method: Peltier element
• CO2 concentration control range: 0 ~ 20% (every 0.1%)
• CO2 display accuracy: +/- 0.1% (at 5.0%)
• Sensor/Dual-beam IR (infrared) sensor
• Alarm function: Temperature/CO2 concentration
• Gas supply pressure: 0.3 ~ 1.0 bar (0.03 ~ 0.1 MPa)
• Access port: 11 mm (upper left side of chamber)
• Chamber Material: ABS Resin
• Number of shelves: Standard 2 (maximum 3, stainless steel)
• Shelf Board Size: 220 x 164 mm
• Power supply: 12 VDC, 100 VAC, 50/60 Hz, 63 W
• Weight: 6.8 kg
• Local validation services (IQ/OQ) are also available.　Please contact us.
• *The on-site validation service is a service that performs installation qualification (IQ) and operational performance qualification (OQ) at the installation site and submits an inspection form.
• *If you would like to request a local IQOQ, please contact us separately. We will need your installation address for the estimate.
