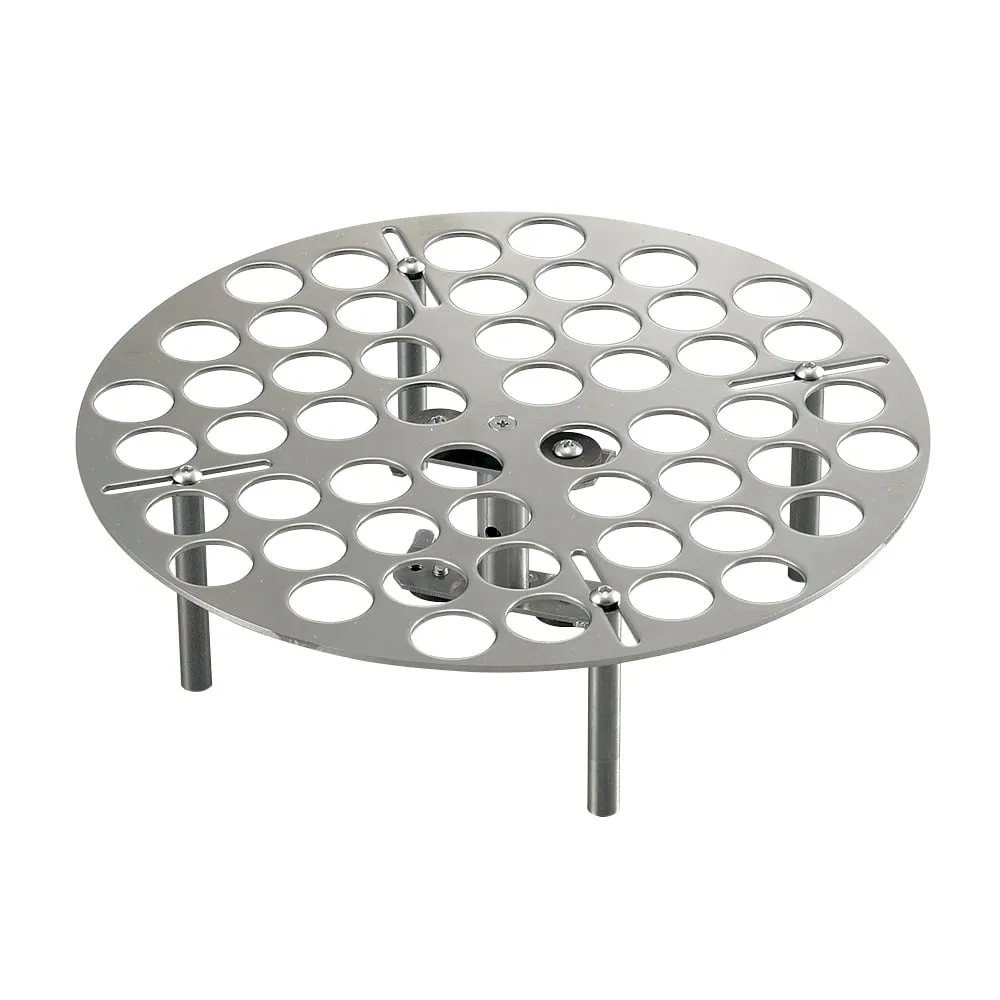

3-1496-01 Stirring Duckboard for Bath Stirrer -
laboratoryinstruments

3-1496-01 Stirring Duckboard for Bath Stirrer -

model: 3-1496-01
brand: AS ONE Corporation

Product Description

Product Model: 3-1496-01Product Brand: AS ONE Corporati […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 3-1496-01
Product Brand: AS ONE Corporation

Features

  • To equalize the temperature of the bath stirrer!
  • By using it as a drainboard for a bath stirrer, the inside of the water tank is stirred to equalize the temperature.
  • You can *** a stirrer to stir a beaker on a drainboard at the same number of revolutions.
  • Can be ***d for oil bath stirrers as well as water bath stirrers (up to 200 degrees Celsius).
  • The magnets for drainboard feet and agitation are pitch movable and can be changed according to the type of water tank.
  • Can stir up to 1200rpm (for water).
  • A water (oil) bath with the right capacity can be ***d in combination with a stirrer.
  • The stirring sawboard itself is equipped with a rotating magnet, so you won't lose your ability as a bus stirrer.
  • A drainboard that stirs the temperature distribution in the water tank, which t***s to be uneven, to keep the temperature even.

Spec

  • main body material: stainless steel (SUS304 430) and others
  • Magnet: Samakova magnet
  • Recomm***ed agitator size: 25 × φ8 mm, 30 × φ8 mm
  • Leg 4 pieces Standard Dimensions: φ 128 mm
  • Environmental resistance: In water and oil
  • Available temperature range: 5 to 200 ° C
  • Weight: 0.2 kg
  • Accessory: Hex wrench
  • duckboard Dimensions (mm): 160 x 46.5
  • The foot of pitch Dimensions (mm): φ 102 to φ 154
  • * It is also possible to combine the bus stirrer and the duckboard (Please be careful of combinations.)
  • * The adaptive bus star is water tank inner diameter φ 180 mm or more
  • * Recomm***ed water bus stirrer (2-7940-31), oil bus stirrer (2-7939-21)
  • model number: agitation duckboard
