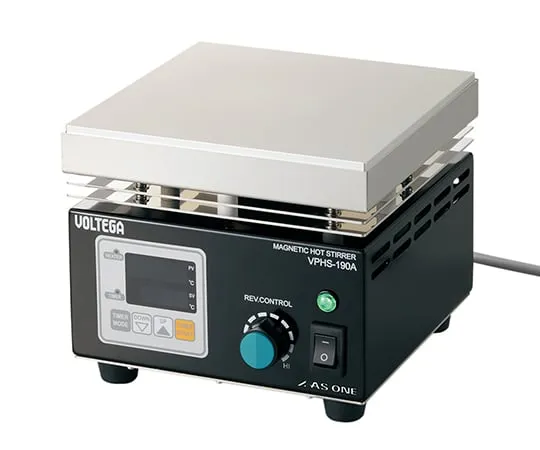

3-1494-01-22 VOLTEGA Power Hot Stirrer with Pre-shipment Inspection Certificate VPHS-190A
Product Description
Product Model: 3-1494-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-1494-01-22
Product Brand: AS ONE Corporation
Features
- Lining up large-capacity, robust models
- Uses strong magnets and induction motors for high-viscosity, large-capacity stirring.
- Feedback control by the taco generator allows stable rotation from low speed to high speed.
- Achieves stable rotation even in the low rotation range.
- You can *** the analog knob to set the number of revolutions relative to the scale.
- The support rod option is available.
- Top Plate Features: Excellent thermal efficiency and durability.
Spec
- Material: Body/SPCC (acrylic paint), Top/Aluminum (anodized)
- Top plate temperature range: room temperature + 5 ~ 300 degrees C
- Motor: Induction motor
- Temperature control method: PID control
- Timer setting range: 0 ~ 99 hours 59 minutes (with device stop function)
- Temperature display accuracy: +/- 2 degrees C
- Heater: sheath heater
- Safety device: Overtemperature protection device, Overcurrent protection f***
- Top size: 190 x 190 mm
- Speed: 60 ~ 1350 rpm
- Motor: 6W
- Stirring capacity: 10 L
- Magnet/Strength (T): Samakoba/0.37
- Heater capacity: 1000 W
- Power supply: 100 VAC 50/60 Hz, 2.5 m 3 P plug
- Maximum power consumption: 1050 W
- Body size: 193 x 193 (225) x 177 mm (Dimensions including projections in ())
- *Stirring capacity and number of revolutions are reference values when the target is water.
- *The size of the stirrer ***d dep***s on its capacity and viscosity. Use them according to your purpose.
- Weight: 6.3 kg
- Aluminum top plate
- Inspection contents App***ix: Inspection inspection documents
- Measured speed, measured temperature, insulation resistance value and apPearance
- App***ix: Inspection Certificate documents
- *Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
