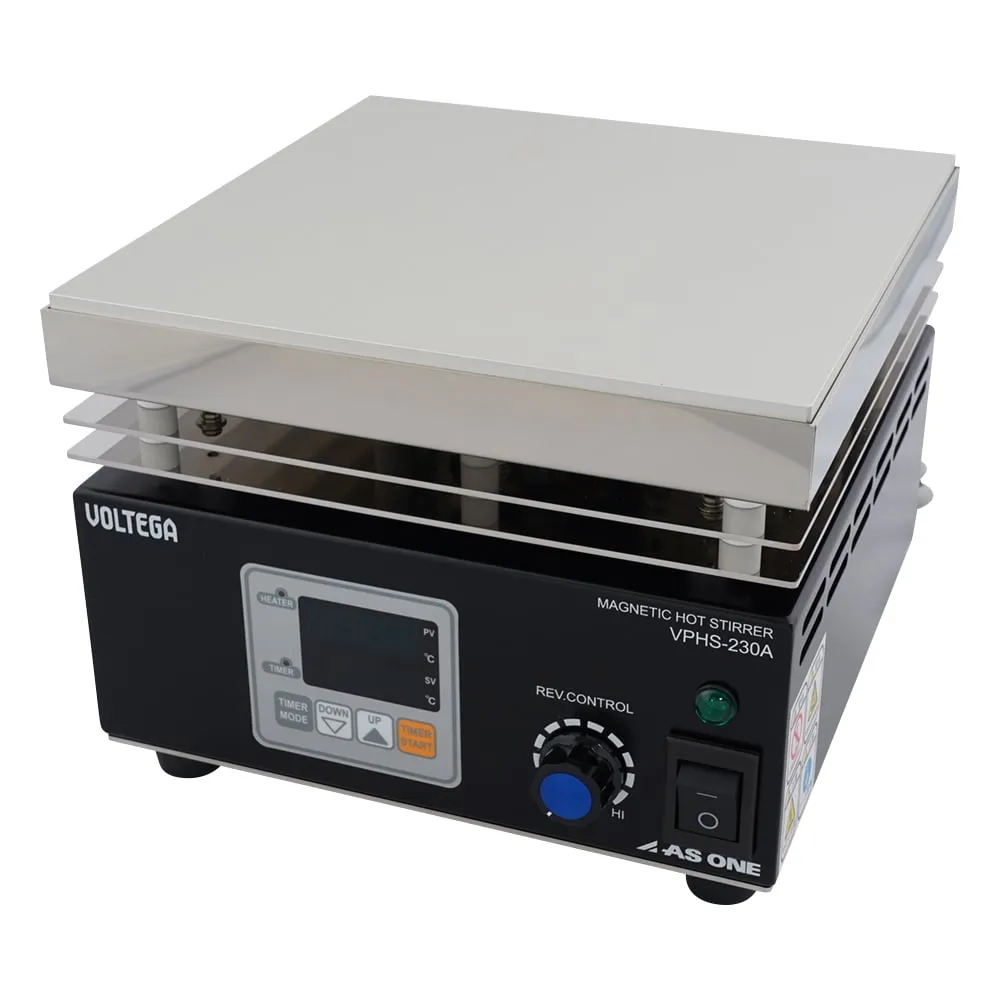

3-1494-02 VOLTEGA Power Hot Stirrer VPHS-230A
Product Description
Product Model: 3-1494-02Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-1494-02
Product Brand: AS ONE Corporation
Features
- Large-capacity, robust models available - Powerful magnets and induction motors enable high-viscosity, large-capacity stirring.
- Feedback control by the taco generator allows stable rotation from low to high speeds.
- Achieves stable rotation even in low rotation range.
- With the analog knob, the number of revolutions can be set in proportion to the scale.
- Support rod options are available.
- Top plate features: Excellent thermal efficiency and durability.
Spec
- Material: Body/SPCC (acrylic coating), Top board/aluminum (anodic oxide processing)
- Top board temperature range: Room temperature +5 - 300℃
- Motor: Induction motor
- Temperature control system: PID control
- Timer setting range: 0 - 99 hours 59 minutes (with equipment stop function)
- Temperature display precision: +/- 2℃
- Heater: Sheathed heater
- Safety device: Temperature excessive rise prevention device, overcurrent protection f***
- Top board material: Aluminum (anodic oxide processing)
- Top board size: 230 x 230mm
- Rotation speed: 60 - 1350rpm
- Motor: 25W
- Stirred capacity: 20L
- Magnet/strength (T): Samarium-cobalt/0.37
- Heater capacity: 1300W
- Power supply: AC100V 50/60Hz, 2.5m 3P plug (with 2P conversion adapter)
- Maximum power consumption: 1350W
- Main unit size *: 233 x 233 (265) x 179mm (*() is the dimension including protrusions *Stirring capacity and rotation speed are the reference values if the target is water. *The size of the stirring bar to be ***d varies dep***ing on the capacity and the viscosity. Use properly dep***ing on the purpose. )
- Weight: 9.9kg
- Aluminum top board
- *Demonstration equipment is available (only 3-1494-01).
- Model number: VPHS-230A
