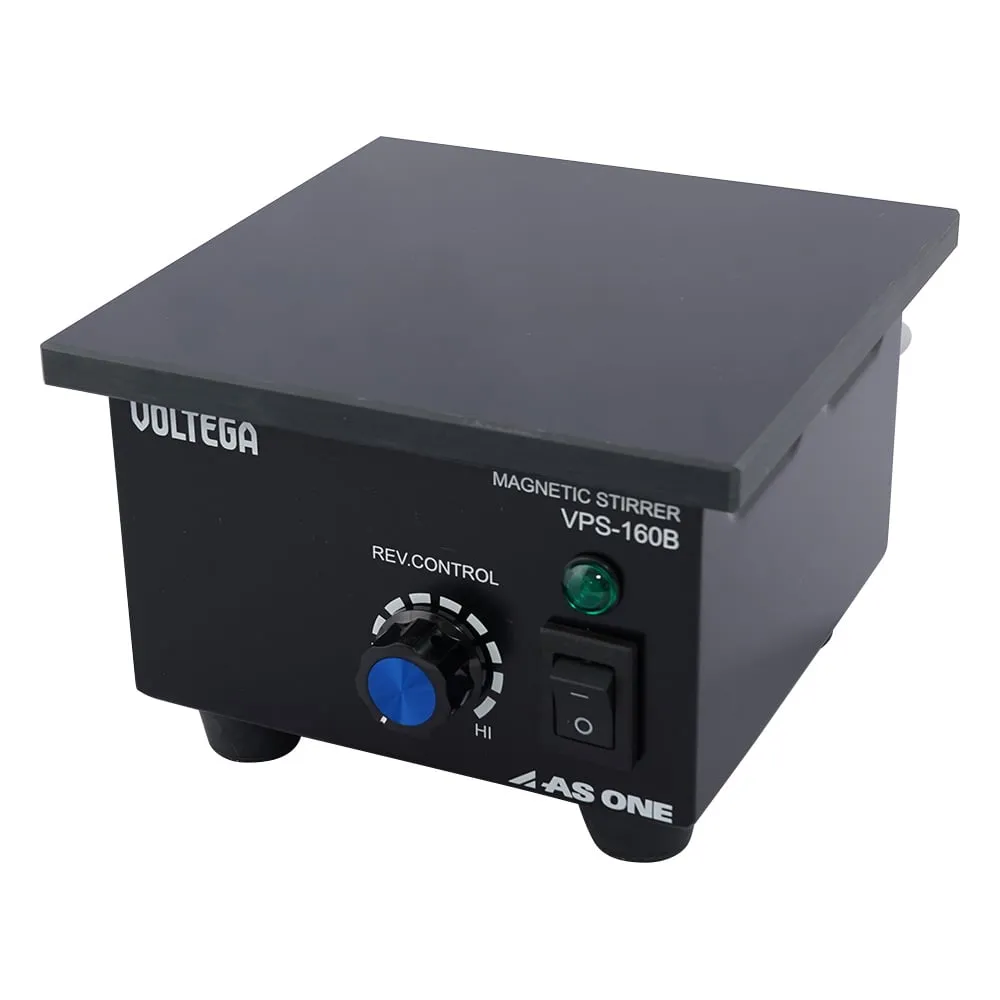

3-1492-01-22 VOLTEGA Power Stirrer (phenolic resin) Analog Type with Pre-shipment Inspection Certificate VPS-160B
Product Description
Product Model: 3-1492-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-1492-01-22
Product Brand: AS ONE Corporation
Features
- Lining up large-capacity, robust models
- Uses strong magnets and induction motors for high-viscosity, large-capacity stirring.
- Feedback control by the taco generator allows stable rotation from low speed to high speed.
- Achieves stable rotation even in the low rotation range.
- You can *** the analog knob to set the number of revolutions relative to the scale.
- The support rod option is available.
- Can be ***d as a stand replacement in combination with a support rod with a dedicated metal fitting attached to the back.
- Phenol Resin Top Plate Features: Excellent oil and acid resistance.
Spec
- Analog type
- Material: Body/SPCC (acrylic paint), Top/Phenolic resin
- Motor: Induction motor
- Variable speed system: Feedback control by taco generator
- Top size: 160 x 160 mm
- Speed: 60 ~ 1350 rpm
- Motor: 3W
- Stirring capacity: 10 L
- Magnet/Strength (T): Neodymium/0.42
- Power supply: 100 VAC 50/60 Hz, 2.5 m 3 P plug
- Maximum power consumption: 20 W
- Body size: 160 x 160 (171) x 111 mm (Dimensions including projections in ())
- *Stirring capacity and number of revolutions are reference values when the target is water.
- *The size of the stirrer ***d dep***s on its capacity and viscosity. Use them according to your purpose.
- Weight: 2.2 kg
- Inspection contents App***ix: Inspection inspection documents
- Actual speed, insulation resistance value and apPearance
- App***ix: Inspection Certificate documents
- *Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
