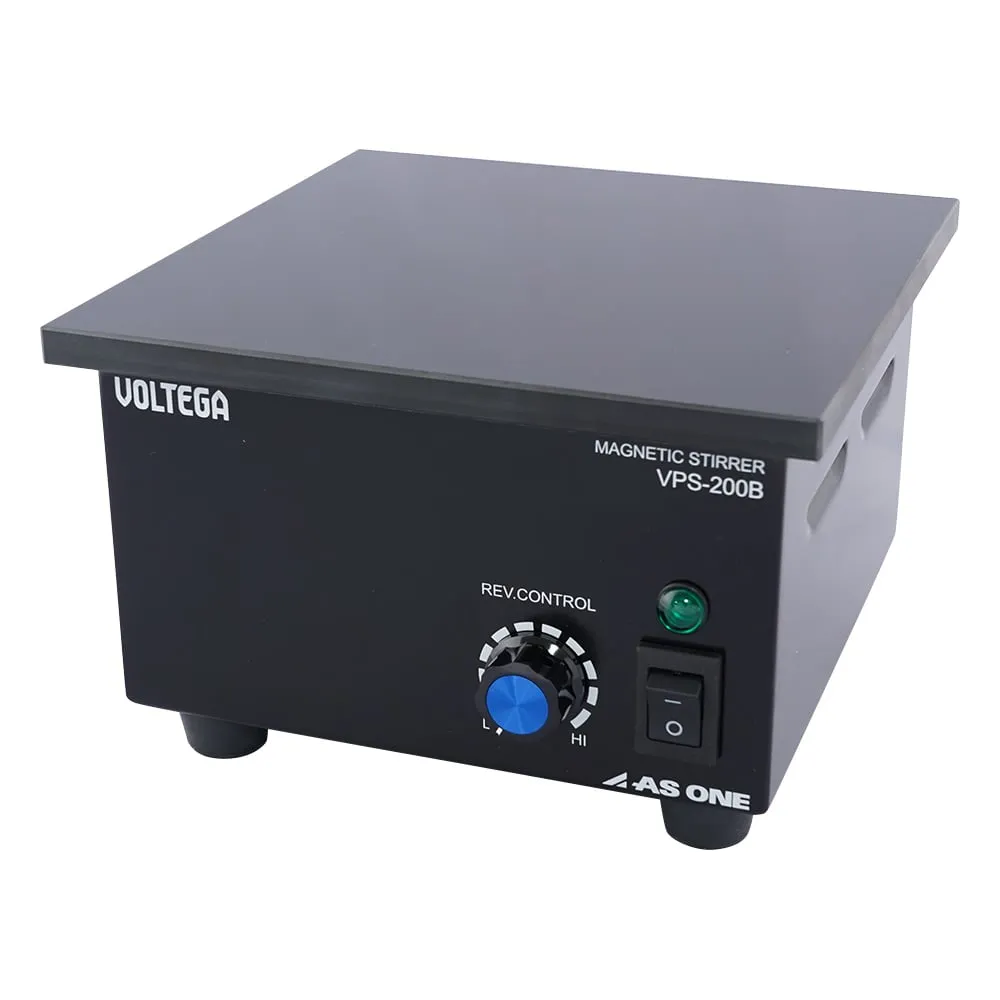

3-1492-02 VOLTEGA Power Stirrer VPS-200B
Product Description
Product Model: 3-1492-02Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-1492-02
Product Brand: AS ONE Corporation
Features
- Lining up large-capacity, robust models
- Uses strong magnets and induction motors for high-viscosity, large-capacity stirring.
- Feedback control by the taco generator allows stable rotation from low speed to high speed.
- Achieves stable rotation even in the low rotation range.
- You can *** the analog knob to set the number of revolutions relative to the scale.
- The support rod option is available.
- It can be ***d as a stand replacement in combination with a support rod with a dedicated metal fitting attached to the back.
- Phenol Resin Top Plate Features: Excellent oil and acid resistance.
Spec
- Material: Body/SPCC (acrylic coating), Top board/Phenol Resin
- Motor: Induction motor
- Top board material: Phenol Resin
- Top board size: 200 x 200mm
- Rotation speed: 60 - 1350rpm
- Motor: 15W
- Stirred capacity: 20L
- Magnet/strength (T): Neodymium/0.42
- Power supply: AC100V 50/60Hz, 2.5m 3P plug (with 2P conversion adapter)
- Maximum power consumption: 40W
- Main unit size *: 200 x 200 (211) x 130mm (*() is the dimension including protrusions *Stirring capacity and rotation speed are the reference values if the target is water. *The size of the stirring bar to be ***d varies dep***ing on the capacity and the viscosity. Use properly dep***ing on the purpose. )
- Weight: 3.9kg
- Phenol Resin top plate
- *Demonstration equipment is available (only 3-1492-01).
- Model number: VPS-200B
