3-1479-01-22 Separate Hot Plate with Pre-shipment Inspection Document SHPR-4030
Product Description
Product Model: 3-1479-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-1479-01-22
Product Brand: AS ONE Corporation

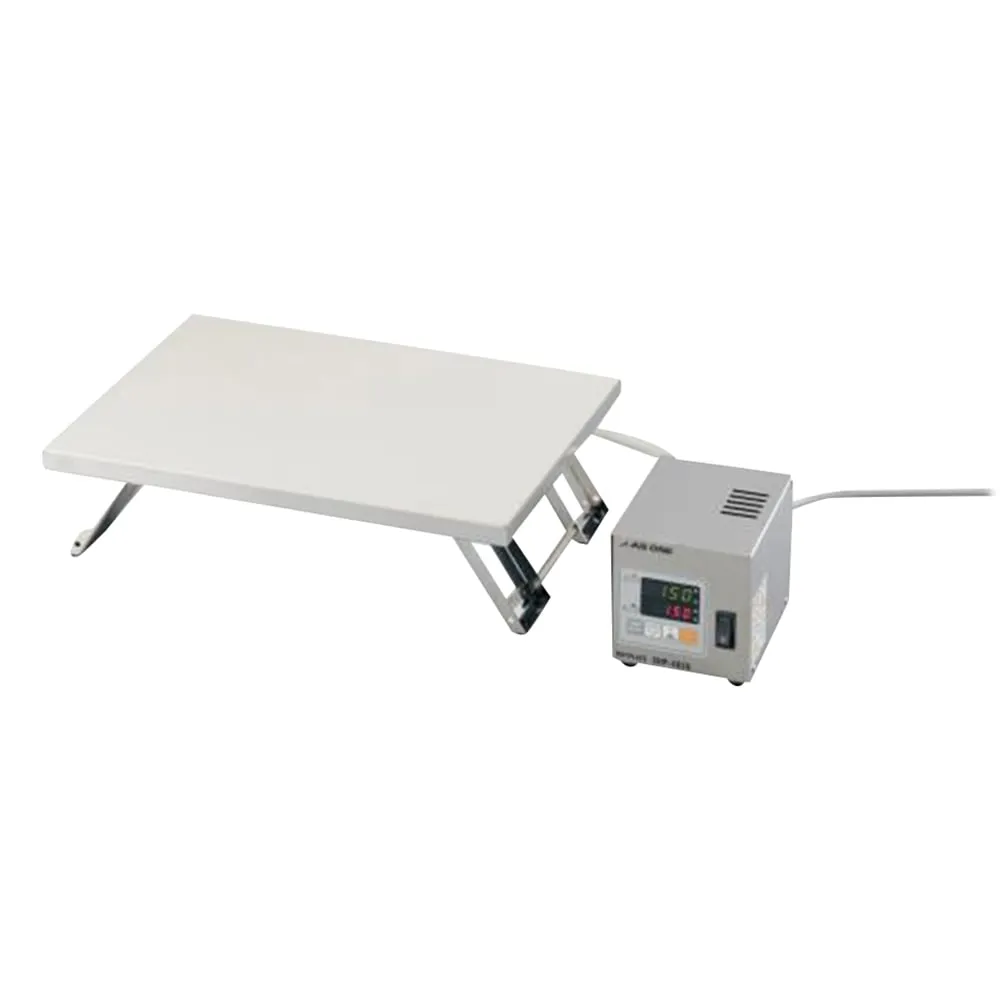

Features
- Chemical-Resistant Top Plate Series with Ceramic Coating on Top Plate
- Since the plate part and the control part are separated, the plate can be ***d alone in drafts, etc. The distance between the main body and the control box is approximately 2 m (separable).
- Since the plate part has no edge, it can be ***d for various purposes.
- Plate legs can be folded and compact to a thickness of 39 mm for convenient storage.
- Compact and easy to install and move.
Spec
- Heater Capacity: Sheath Heater 900 W
- temperature regulator: PID control
- Temperature adjustment accuracy: ±2°C
- Hot Plate Surface Temperature: Room Temperature +5°C~200°C
- Temperature control timer: 0~99 hours 59 minutes (with device shutdown function)
- Top Plate Material: Aluminum + Ceramic Coating
- Plate Part: Size/402.5 x 302.5 x 120 mm, Material/Stainless Steel (SUS304/SUS430)
- Control Part: Size/110 x 150 (169) x 102 mm, () includes Protrusion Dimensions, Material/Stainless Steel (SUS430)
- Safety Device: Overcurrent Protection, Thermal F***
- Power: 100 VAC 50/60Hz
- Power cord: 2.5 m grounded 3P plug)
- Weight: Main Unit/5.7 kg, Control Unit/1.9 kg
- Load Capacity: 10 kg
- Maximum temperature (°C): 200
- Plate Size (mm): 400 x 300
- Chemical-Resistant Top Plate
- Model Number: SHPR-4030
- This product can provide inspection and inspection services. Please contact us.
- *The inspection and inspection service is a service that inspects the control system (internal temperature measurement, etc.) and the electric locomotive at the time of shipment or at the customer's site, and issues inspection reports.
