Electronic/Electrical Parts and Controll Equipments

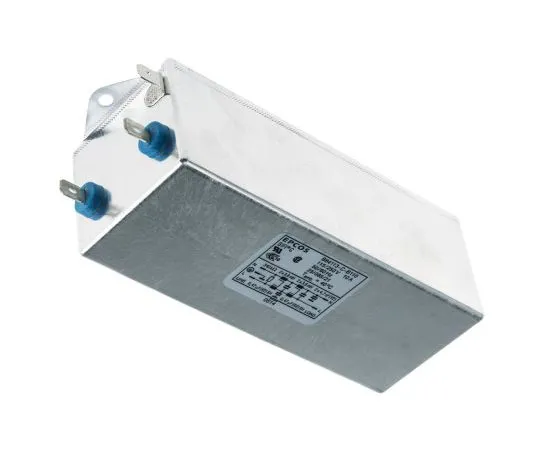

63-7427-29 EPCOS B84113C Series 10A 250 V ac/dc 50 → 60Hz Chassis Mount RFI Filter, with Tab Terminals, Single Phase B84113C0000B110
Product Description
Product Model: 63-7427-29Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7427-29
Product Brand: EPCOS
Features
- UL recognised, CSA Certified, VDE. B84113-C / B84115-E Series. High attenuation over a wider frequency range from high inductance values SIFI-E range gives a better overall attenuation performance at frequencies below 150kHz Ideally suited for switch mode power supplies in industrial electronic equipment Low leakage current Aluminium case
Spec
- Quantity:1piece
- Maximum Current Rating : 10A
- Maximum Voltage Rating : 250 V ac/dc
- Mounting Type : Chassis Mount
- Termination Style : Tab
- Number of Phases : 1
- Number of Stages : Two Stage
- Operating Frequency : 50 → 60Hz
- Length : 159mm
- Depth : 50.8mm
- Height : 38.1mm
- Inductance : 3.6 x 4 mH
- Leakage Current : 0.369 mA
- Maximum Operating Temperature : +85°C
- CODE No.:213-7097
