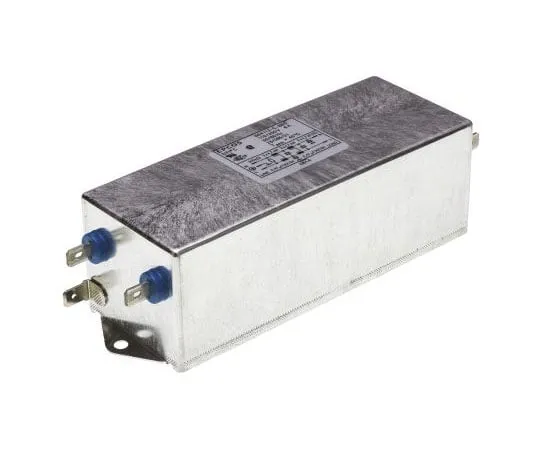

63-7427-27 EPCOS B84113C Series 6A 250 V ac 50 → 60Hz Chassis Mount RFI Filter, with Tab Terminals, Single Phase B84113C0000B060
Product Description
Product Model: 63-7427-27Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7427-27
Product Brand: EPCOS
Features
- UL recognised, CSA Certified, VDE. B84113-C / B84115-E Series. High attenuation over a wider frequency range from high inductance values SIFI-E range gives a better overall attenuation performance at frequencies below 150kHz Ideally suited for switch mode power supplies in industrial electronic equipment Low leakage current Aluminium case
Spec
- Quantity:1piece
- Maximum Current Rating : 6A
- Maximum Voltage Rating : 250 V ac
- Mounting Type : Chassis Mount
- Termination Style : Tab
- Number of Phases : 1
- Number of Stages : Two Stage
- Operating Frequency : 50 → 60Hz
- Length : 50.8mm
- Depth : 159mm
- Height : 44.5mm
- Inductance : 4.7 x 4 mH
- Leakage Current : 0.369 mA
- Maximum Operating Temperature : +85°C
- CODE No.:213-7081
