Electronic/Electrical Parts and Controll Equipments

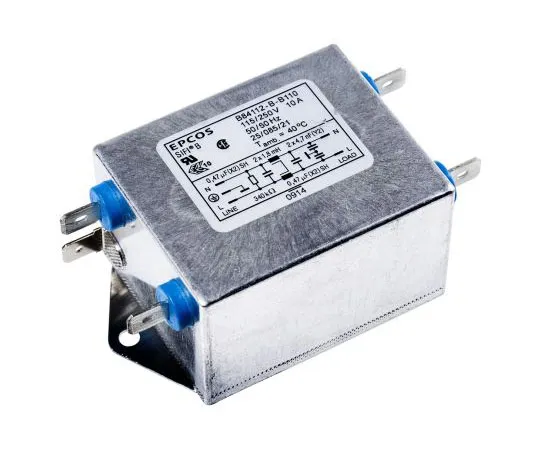

63-7427-21 EPCOS B84112B Series 10A 250 V ac 50 → 60Hz Chassis Mount RFI Filter, with Screw Terminals, Single Phase B84112B0000B110
Product Description
Product Model: 63-7427-21Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7427-21
Product Brand: EPCOS
Features
- UL Listed, CSA Certified, VDE, SEV, SEMKO, DEMKO. B84112 Series. EPCOS B84112 series RFI 2 - line filter is for 1 phase systems. The RFI filter is a compact design and easy to install, it features optimized leakage current. Rated voltage VR: 250 V ac/dc. Rated current IR: 1 A to 20 A. Applications. Industrial electronics Switch-mode power supplies Telecommunications DC applications Data systems
Spec
- Quantity:1piece
- Maximum Current Rating : 10A
- Maximum Voltage Rating : 250 V ac
- Mounting Type : Chassis Mount
- Termination Style : Screw
- Number of Phases : 1
- Number of Stages : Single Stage
- Operating Frequency : 50 → 60Hz
- Length : 70mm
- Depth : 89.5mm
- Height : 38.1mm
- Inductance : 1.8 x 2 mH
- Leakage Current : 0.369 mA
- Maximum Operating Temperature : +85°C
- Standards Met : UL 1283
- CODE No.:213-7053
