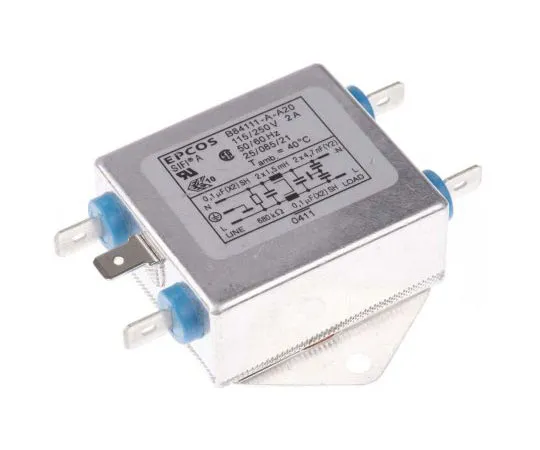

63-7427-06 EPCOS B84111A Series 2A 250 V ac 60Hz Flange Mount RFI Filter, with Tab Terminals, Single Phase B84111A0000A020
Product Description
Product Model: 63-7427-06Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7427-06
Product Brand: EPCOS
Features
- UL Listed, CSA Certified, VDE, SEV, SEMKO, DEMKO. B84111 Series. EPCOS B84111A power line filters for 1 phase systems are constructed in a metal case with 2 line filters.These RFI filters are compact in design and easy to install. Optimized leakage current ;0.5mA.Rated voltage VR: 250 V AC/DC.Rated current IR: 1 A to 20 A. Applications. Industrial electronics Switch-mode power supplies Telecommunications DC applications Data systems
Spec
- Quantity:1box(32pieces)
- Maximum Current Rating : 2A
- Maximum Voltage Rating : 250 V ac
- Mounting Type : Flange Mount
- Termination Style : Tab
- Number of Phases : 1
- Number of Stages : Single Stage
- Operating Frequency : 60Hz
- Length : 76.5mm
- Depth : 70mm
- Capacitance : 0.1 x 2 μF, 4700 x 2 pF
- Dimensions : 76.5 x 70 x 22.3
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +85°C
- CODE No.:167-8246
