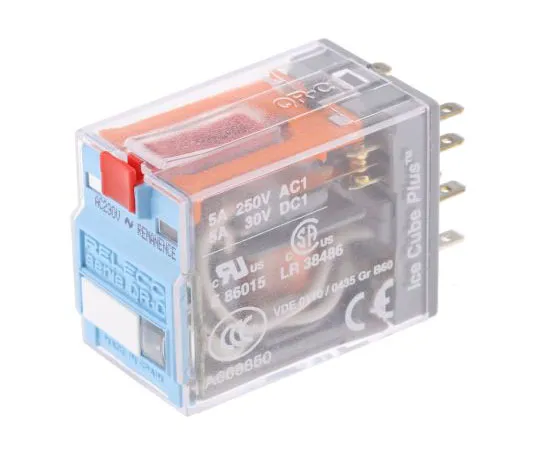

63-7426-71 DPDT Plug In Latching Relay 5 A, 230V ac For Use In Power Applications C9R21N230A
Product Description
Product Model: 63-7426-71Product Brand: Releco Features […]
Contact Us
Product Details
Product Model: 63-7426-71
Product Brand: Releco
Features
- 5A DPCO Latching - C9 Series. Relays have a test button and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250 V ac and the operating temperature is -40 to +60°C. Contacts remain latched on even after the supply is removed from the 'set' input Contacts are switched off by pulsing the 'reset' input Relay socket also available (see stock no. < 437-783') 437-783
Spec
- Quantity:1piece
- Coil Voltage : 230V ac
- Contact Configuration : DPDT
- Mounting Type : Plug In
- Maximum Switching Voltage AC : 120V ac
- Maximum Switching Voltage DC : 30V dc
- Length : 28mm
- Depth : 21mm
- Height : 37.5mm
- Dimensions : 28 x 37.5 x 21mm
- Terminal Type : Through Hole
- Application : Power
- Maximum Operating Temperature : +60°C
- CODE No.:213-0838
