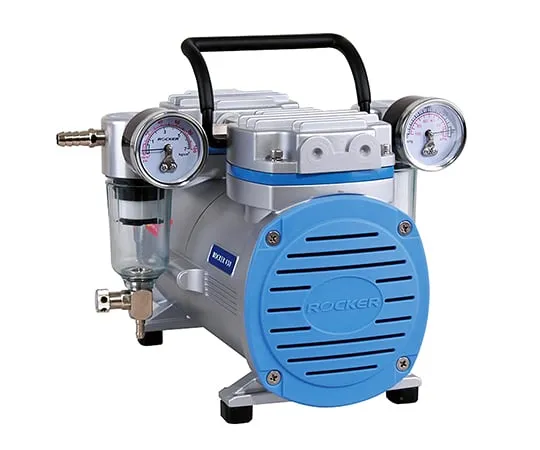

3-6102-01 Oil-Free Air Pump Rocker430
model:
3-6102-01
category:
laboratoryinstruments
Product Description
Product Model: 3-6102-01 Features This is an oil-free d […]
Contact Us
Product Details
Product Model: 3-6102-01
Features
- This is an oil-free dry pump.
- A filter unit is mounted on the intake side to prevent moisture and foreign matter from entering the pump.
- A filter unit is also installed on the exhaust side.
Spec
- Model number: Rocker430
- Displacement (50/60Hz): 28/34L/min
- Achieving pressure: 17.3kPa
- Highest pressure: 0.55MPa
- Connection port size: φ8mm
- Gas contact unit material: Aluminum alloy
- Power supply: 100VAC 50/60Hz
- Size: 230 x 247 x 269mm
- Weight: 5.5kg
- For both discharge and suction
- Achieving pressure: 17.3kPa
- Highest pressure: 0.55MPa
- Connection port size: φ8mm
- Gas contact unit material: Aluminum alloy
- Power supply: 100VAC 50/60Hz
- Size: 230 x 247 x 269mm
- Weight: 5.5kg
- For both discharge and suction
