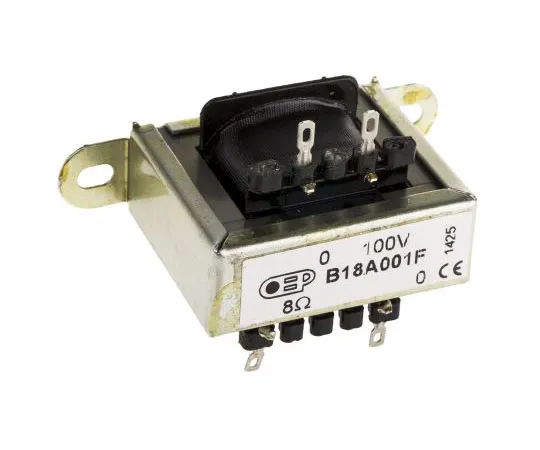

63-7425-04 Chassis Mount Audio Transformer 8Ω 2W B18A001F
Product Description
Product Model: 63-7425-04Product Brand: OEP Features Th […]
Contact Us
Product Details
Product Model: 63-7425-04
Product Brand: OEP
Features
- These transformers are for 100V line matching; they are not suitable for other output matching situations. 100V Line Transformer. These 100V line transformers are brought to your by OEP, and are designed to match loudspeakers to the 100V line output of PA amplifiers. The OEP range of 100V Line Transformers includes the following products:. 210-6497 210-6497 is a 2W Line Transformer for 8Ω speakers. 210-6504 210-6504 is a 5W Line Transformer for 8Ω speaker. 210-6526 210-6526 is a 10W Line Transformer for 8Ω speaker. 210-6532 210-6532 is a universal type suitable for 4, 8 or 16Ω speakers and provided with taps to deliver 1, 2, 5, 15 or 30W.
Spec
- Quantity:1piece
- Secondary Impedance : 8Ω
- Primary DC Resistance : 320Ω
- Power Rating : 2W
- Current Rating : 500mA
- Secondary DC Resistance : 0.7Ω
- Dimensions : 44.5 x 36 x 32.9mm
- Mounting Type : Chassis Mount
- Weight : 190g
- Depth : 32.9mm
- Length : 44.5mm
- Width : 36mm
- Minimum Operating Frequency : 50Hz
- CODE No.:210-6497
