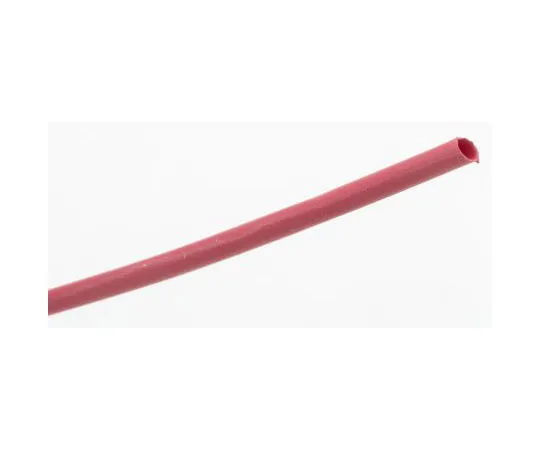

63-7424-05 Thomas & Betts Red Heat Shrink Tubing Kit 1.6mm Sleeve Dia. x 12m Length, Shrink-Kon Series 2:1 Ratio 7TCA017300R0368 HSB63-2
model:
63-7424-05
brand:
Thomas & Betts
Product Description
Product Model: 63-7424-05Product Brand: Thomas & Be […]
Contact Us
Product Details
Product Model: 63-7424-05
Product Brand: Thomas & Betts
Features
- Shrink-Kon Heat Shrink Tube® HSB Box. Heat shrink tube from dispenser box PLG heat shrink tube in various colours and sizes Indispensible for insulation, repairs and labelling in both pastime and professional applications HSB box is stable, space-saving and handy Polyolefin cross linked by irradiation, thin-walled Temperature range -55° → +125 °C Shrink capacity 2:1 Shrink temperature > +110 °C Inner diameter from 0.6 mm → 25.4 mm Boxes are stackable Cutting length auxiliary dimension Simple handling due to clear labelling Inspection window for checking contents and Euro hanger for hanging Single material : problem-free disposal Dielectric strength : 20 kV/mm
Spec
- Quantity:1piece
- Sleeve Diameter : 1.6mm
- Shrunk Diameter : 0.8mm
- Colour : Red
- Sleeve Type : Heat Shrink
- Shrink Ratio : 2:1
- Sleeve Length : 12m
- Material : Cross Linked Polyolefin
- Flame Retardant : Yes
- Series : Shrink-Kon
- CODE No.:208-8923
