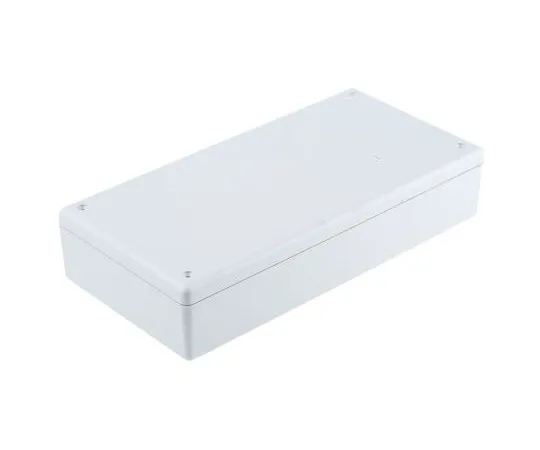

63-7423-25 Hammond 1599, ABS Enclosure, IP54, 220 x 110 x 44mm 1599HGY
Product Description
Product Model: 63-7423-25Product Brand: Hammond Feature […]
Contact Us
Product Details
Product Model: 63-7423-25
Product Brand: Hammond
Features
- Flame retardant version carries a UL flammability rating of 94V-0. Hand Held Instrument Cases. Moulded in either flame retardant ABS or general purpose ABS plastic. 2-piece lap joint construction Designed to meet IP54 Extra deep top and shallow base sections Recessed area on top of case for keypads/displays, etc. Lid is secured with either Philips machine screws, threaded into tapped integral brass bushings (flame retardant version or self tapping screws (general purpose version) Base with moulded knockouts for wall mounting Top and base have 6 bosses for PCB mounting Tops have vertical card guides
Spec
- Quantity:1piece
- Body Material : ABS
- External Dimensions : 220 x 110 x 44mm
- External Length : 220 mm
- External Width : 110 mm
- External Height : 44 mm
- IP Rating : IP54
- Colour : Grey
- Lid Colour : Grey
- Series : 1599
- Number Of Knockouts : 2
- CODE No.:207-2120
