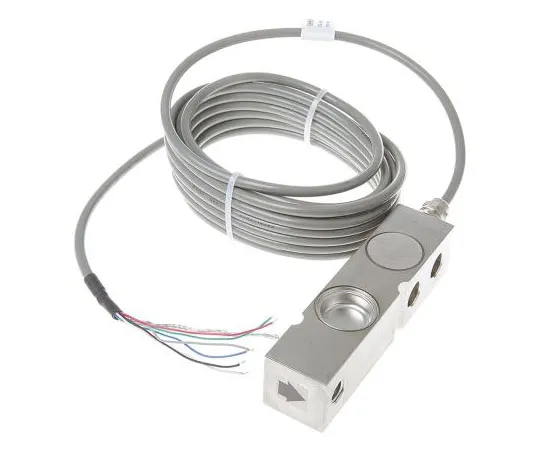

63-7423-13 Tedea Huntleigh Compression Load Cell 1000kg, 15V dc, IP68 MODEL3510-1000-C2
model:
63-7423-13
brand:
Tedea Huntleigh
Product Description
Product Model: 63-7423-13Product Brand: Tedea Huntleigh […]
Contact Us
Product Details
Product Model: 63-7423-13
Product Brand: Tedea Huntleigh
Features
- Shear Beam - Stainless Steel. Compensated Temperature Range -10 to +40°C Output Impedance 350 +/- 3Ω Termination Type: Cable Ultimate Overload: 300% of Rated Load. Rugged, low profile, welded unit designed to work in harsh environments. Stainless steel units, sealed to IP68, suitable for *** in pallet weighers, hopper and tank weighing Fitted with 5m 6-core shielded cable Dimensions 32 x 32 x 130mm
Spec
- Quantity:1piece
- Force Measured : Compression
- Force/ Load Measurement Range : 1000kg
- Maximum Excitation Voltage : 15V dc
- Output At Rated Load : 2mV/V
- Housing Material : Stainless Steel
- IP Rating : IP68
- Terminal Type : Wire Lead
- Overall Height : 32mm
- Overall Width : 130mm
- Overall Depth : 32mm
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +40°C
- Sensor Type : Low Profile
- CODE No.:206-8632
