Electronic/Electrical Parts and Controll Equipments

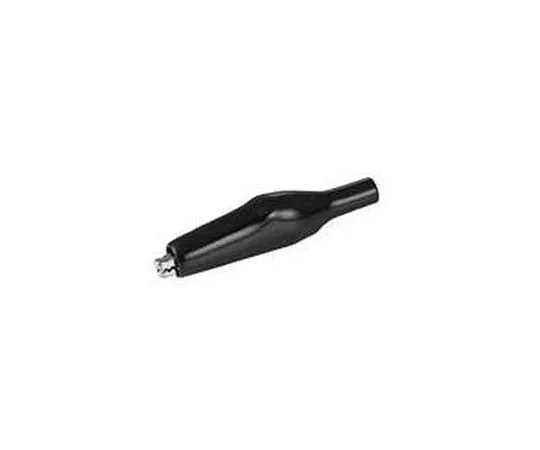

63-3146-07 Minnow Clip 30 V -7 A large black C-4-L-B
model:
63-3146-07
brand:
SATO PARTS CO., LTD.
Product Description
Product Model: 63-3146-07Product Brand: SATO PARTS CO., […]
Contact Us
Product Details
Product Model: 63-3146-07
Product Brand: SATO PARTS CO., LTD.
Features
- This is a large-sized clip covered with a minnow-like coating. Please remove the coating and solder it with the electric wire.
Spec
- Size: L size
- Color: Black
- Number of pieces: 1
- Rating: 30 V -7 A
- Withstand voltage: 500 VAC (1 minute)
- Insulation resistance: 500 VDC, 100 megohms or more (1 minute)
- Body Material: Brass
- Main insulation material: P.V.C.
- Hand soldering (soldering iron) conditions
- Temperature of trowel tip: 390 +/- 10 degrees C
- Iron application time: 5 +/- 1 second
- Number of times: twice
