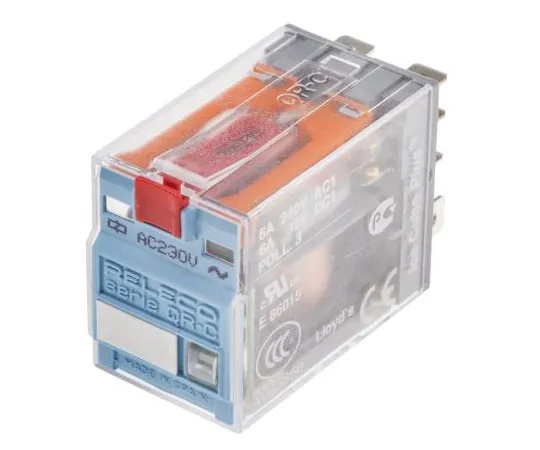

63-7422-78 RelecoC7 DPDT Non-Latching Relay PCB Mount, 230V ac Coil, 6A C7-T21X / AC 230 V
Product Description
Product Model: 63-7422-78Product Brand: Releco Features […]
Contact Us
Product Details
Product Model: 63-7422-78
Product Brand: Releco
Features
- 6A DPCO Bifurcated Contacts - C7 Series. Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C. Bifurcated contacts for low level signal switching Suitable for a minimum level of 5mA @ 5Vdc
Spec
- Quantity:1piece
- Coil Voltage : 230V ac
- Coil Power : 1.2W
- Coil Resistance : 18.006 kΩ
- Isolation Coil To Contact : 2.5kV
- Contact Configuration : DPDT
- Mounting Type : PCB Mount
- Switching Current : 6A
- Terminal Type : Through Hole
- Maximum Switching Voltage AC : 250V ac
- Maximum Switching Voltage DC : 30V dc
- Height : 56mm
- CODE No.:206-2189
