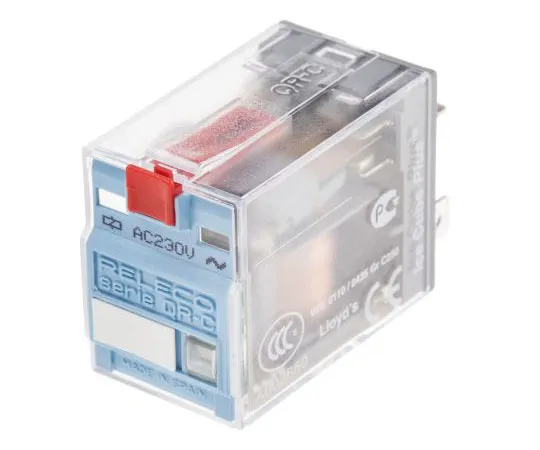

63-7422-75 RelecoC7 SPNO Non-Latching Relay PCB Mount, 230V ac Coil, 6A C7-X10X / AC 230 V
Product Description
Product Model: 63-7422-75Product Brand: Releco Features […]
Contact Us
Product Details
Product Model: 63-7422-75
Product Brand: Releco
Features
- 10A SPNO High DC - C7 Series. Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C. Double make open contact for improved DC switching Suitable for 6A @ 110V DC1 or 1A @220V DC1
Spec
- Quantity:1piece
- Coil Voltage : 230V ac
- Coil Power : 1.5W
- Coil Resistance : 14.006 kΩ
- Isolation Coil To Contact : 2.5kV
- Contact Configuration : SPNO
- Mounting Type : PCB Mount
- Switching Current : 6A
- Terminal Type : Through Hole
- Maximum Switching Voltage AC : 250V
- Maximum Switching Voltage DC : 30V
- Series : C7
- CODE No.:206-2151
