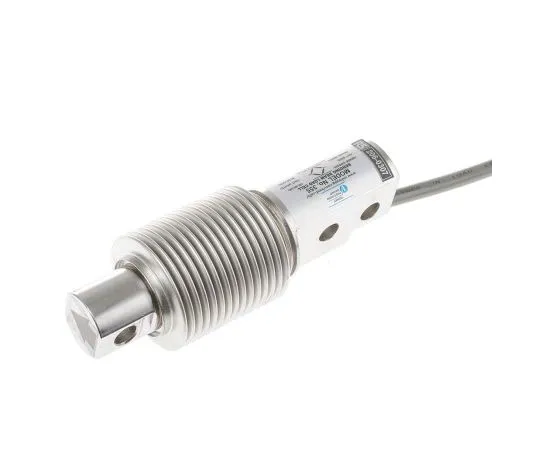

63-7422-28 Tedea Huntleigh Compression Load Cell 100kg, 15V dc, IP68 0355-0100-G300-RS
model:
63-7422-28
brand:
Tedea Huntleigh
Product Description
Product Model: 63-7422-28Product Brand: Tedea Huntleigh […]
Contact Us
Product Details
Product Model: 63-7422-28
Product Brand: Tedea Huntleigh
Features
- Cantilever - Stainless Steel. Compensated Temperature Range -10 to +40°C Output Impedance 350 +/- 3Ω Termination Type: Cable Ultimate Overload: 300% of Rated Load. Low profile, welded stainless steel cells hermetically sealed to IP67 for *** in harsh environments. Suitable for platform scales, hopper and tank weighing, general process weighing, test rigs and general force measurements Mounting via 3 x 8mm holes Connection via 3m 6-core screened cable Dimensions 120 x 32mm dia.
Spec
- Quantity:1piece
- Force Measured : Compression
- Force/ Load Measurement Range : 100kg
- Maximum Excitation Voltage : 15V dc
- Output At Rated Load : 2mV/V
- Housing Material : Stainless Steel
- IP Rating : IP68
- Terminal Type : Wire Lead
- Overall Width : 120mm
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +40°C
- Sensor Type : Low Profile
- CODE No.:206-0307
