Spec

• Package: LQ2

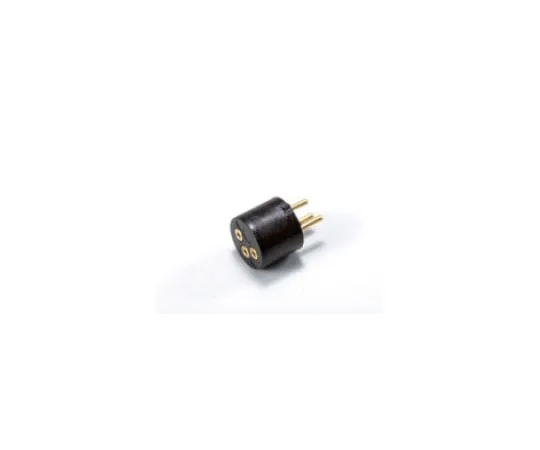

• Contents: Socket for laser diode
• Compatible LED diameter: phi 0.4 ~ 0.5
• Color: Gold-plated
• Type: -
• Holder Size: -
• Entries: 10
• Material: Resin Part: PPS Black (UL 94 V-0)/Socket Part: Body ... Brass/Contact ... Beryllium Copper
• Treatment: Nickel Underlay Gold Plating
• Current rating: 1A
• Contact resistance: 10 m.OMEGA. or less
• Insulation resistance: 500 megohms or more
• Insulation voltage: 500 V AC, 1 minute DC
• Number of times/force: 100 times or more/30 g or more (per 1 pin)
• Reflow: Yes
• Operating temperature range: -40 to + 125 degrees C
• Printed circuit board mounting hole diameter: 0.7 ~ 0.8 phi
