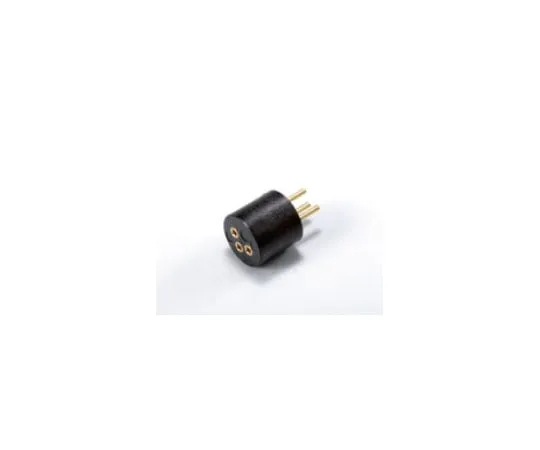

63-3141-94 Socket for laser diode (10 pieces) LQ-203
model:
63-3141-94
brand:
MAC EIGHT CO., LTD
Product Description
Product Model: 63-3141-94Product Brand: MAC EIGHT CO., […]
Contact Us
Product Details
Product Model: 63-3141-94
Product Brand: MAC EIGHT CO., LTD
Spec
- Package: LQ2
- Contents: Socket for laser diode
- Compatible LED diameter: phi 0.4 ~ 0.5
- Color: Gold-plated
- Type: -
- Holder Size: -
- Entries: 10
- Material: Resin Part: PPS Black (UL 94 V-0)/Socket Part: Body ... Brass/Contact ... Beryllium Copper
- Treatment: Nickel Underlay Gold Plating
- Current rating: 1A
- Contact resistance: 10 m.OMEGA. or less
- Insulation resistance: 500 megohms or more
- Insulation voltage: 500 V AC, 1 minute DC
- Number of times/force: 100 times or more/30 g or more (per 1 pin)
- Reflow: Yes
- Operating temperature range: -40 to + 125 degrees C
- Printed circuit board mounting hole diameter: 0.6 ~ 0.7 phi
