Features

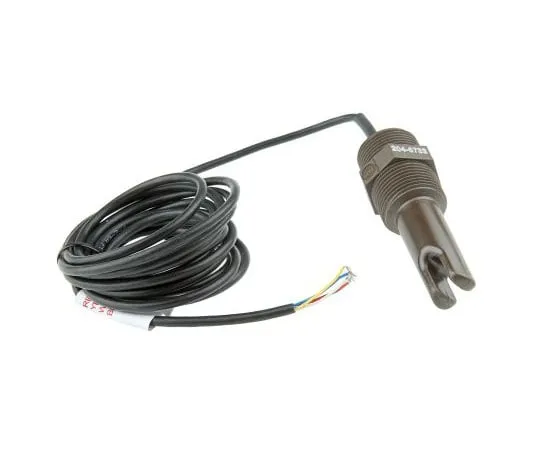

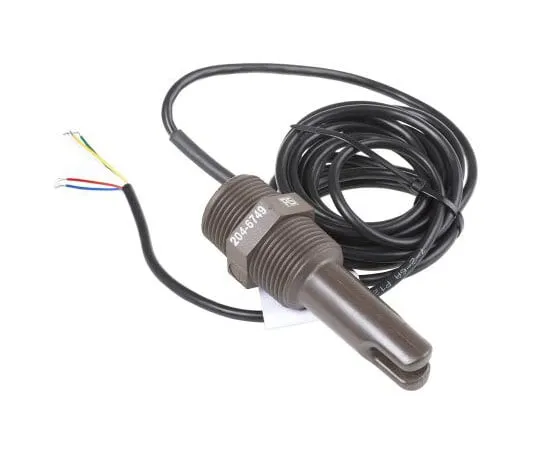

• If the liquid to be monitored is flowing, the device should be fitted with the gap inline with the flow. In storage tanks it should be fitted with the gap vertical unless the liquid is highly aerated when it should be angled. Ultrasonic Level Switches. Ultrasonic liquid level switch int***ed for level detection at a fixed point when liquid fills the gap between the crystals. Polyphenylene sulphide construction, ingress protection to IP67/68. Vessel pressure 5 bar maximum Wet switching level detection at a fixed point when liquid fills the gap between the crystals Supply voltage; 18 -30Vac/dc Switched voltage 30Vdc maximum Suitable for low maintenance applications High reliability with no moving parts Not easily subject to fouling and not affected by ambient light conditions Fitted with three metres of cable
