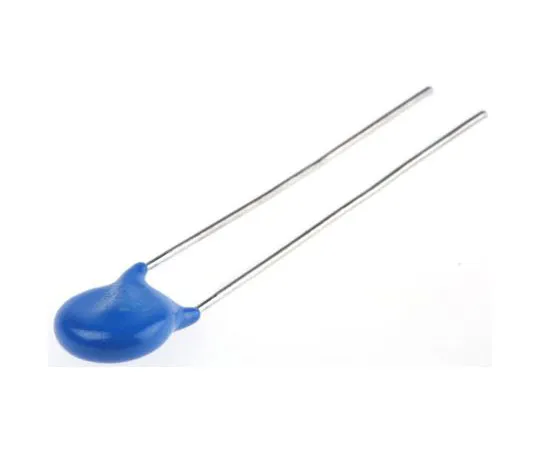

63-7421-53 EPCOS Standard Series Metal Oxide Varistor 105pF 10A, Clamping 650V, Varistor 390V B72207S0251K101
Product Description
Product Model: 63-7421-53Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7421-53
Product Brand: EPCOS
Features
- UL, CSA, VDE. Metal Oxide Varistors Standard Series. Standard radial epoxy-coated MOV with tinned-copper leads. Tinned copper wire leads with a ceramic body coated with epoxy resin Rated for surge current (8//20 μs) and for energy (2ms)
Spec
- Quantity:1bag(5pieces)
- Varistor Voltage : 390V
- Maximum AC Voltage Rating : 250V
- Maximum DC Voltage Rating : 320V
- Clamping Voltage : 650V
- Clamping Current : 10A
- Energy : 19J
- Series : Standard
- Diameter : 9mm
- Maximum Surge Current : 1200A
- Capacitance : 105pF
- Thickness : 4.2mm
- Dimensions : 9 (Dia.) x 4.2mm
- Lead Pitch : 5mm
- CODE No.:204-2056
