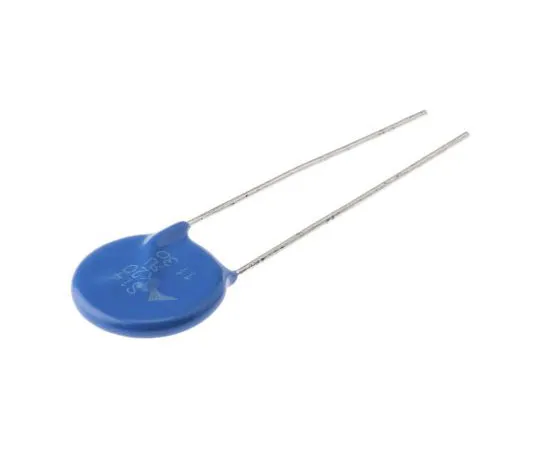

63-7421-49 EPCOS Standard Series Metal Oxide Varistor 6.8nF 10A, Clamping 65V, Varistor 33V B72214S0200K101
Product Description
Product Model: 63-7421-49Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7421-49
Product Brand: EPCOS
Features
- UL, CSA, VDE. Metal Oxide Varistors Standard Series. Standard radial epoxy-coated MOV with tinned-copper leads. Tinned copper wire leads with a ceramic body coated with epoxy resin Rated for surge current (8//20 μs) and for energy (2ms)
Spec
- Quantity:1bag(5pieces)
- Varistor Voltage : 33V
- Maximum AC Voltage Rating : 20V
- Maximum DC Voltage Rating : 26V
- Clamping Voltage : 65V
- Clamping Current : 10A
- Energy : 6J
- Series : Standard
- Diameter : 15.5mm
- Maximum Surge Current : 1000A
- Capacitance : 6.8nF
- Thickness : 4.6mm
- Dimensions : 15.5 (Dia.) x 4.6mm
- Lead Pitch : 7.5mm
- CODE No.:204-1918
