Electronic/Electrical Parts and Controll Equipments

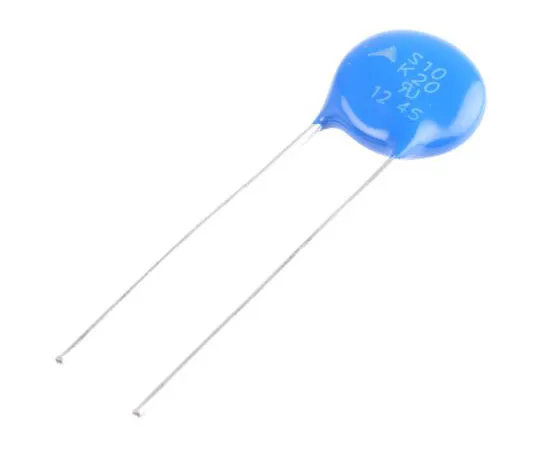

63-7421-47 EPCOS Standard Series Metal Oxide Varistor 3.65nF 5A, Clamping 65V, Varistor 33V B72210S0200K101
Product Description
Product Model: 63-7421-47Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7421-47
Product Brand: EPCOS
Features
- UL, CSA, VDE. Metal Oxide Varistors Standard Series. Standard radial epoxy-coated MOV with tinned-copper leads. Tinned copper wire leads with a ceramic body coated with epoxy resin Rated for surge current (8//20 μs) and for energy (2ms)
Spec
- Quantity:1bag(5pieces)
- Varistor Voltage : 33V
- Maximum AC Voltage Rating : 20V
- Maximum DC Voltage Rating : 26V
- Clamping Voltage : 65V
- Clamping Current : 5A
- Energy : 3.1J
- Series : Standard
- Diameter : 12mm
- Maximum Surge Current : 500A
- Capacitance : 3.65nF
- Thickness : 4.5mm
- Dimensions : 12 (Dia.) x 4.5mm
- Lead Pitch : 7.5mm
- CODE No.:204-1873
