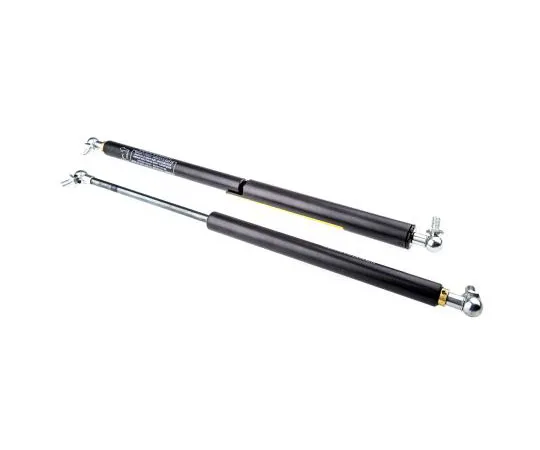

63-7420-78 Camloc Steel Gas Strut, with Ball & Socket Joint, 364mm Ext***ed Length, 150mm Stroke Length SWV8ECV800002
model:
63-7420-78
brand:
Camloc Gas Springs
Product Description
Product Model: 63-7420-78Product Brand: Camloc Gas Spri […]
Contact Us
Product Details
Product Model: 63-7420-78
Product Brand: Camloc Gas Springs
Features
- Camloc Econoloc Gas Springs. With Camloc s Econoloc gas springs there is no need to *** separate safety rods as they lock when fully ext***ed which protects the ***r from potential injury in case of overloading or mis***. The Econoloc operates automatically making it extremely simple to *** – when fully ext***ed a spring-loaded locking shroud moves into position so the gas spring cannot be compressed without manual release. Features:. No need for separate safety rods Automatic operation Maintenance-free Self-contained unit Simple and safe to ***
Spec
- Quantity:1set
- Locking & Holding : Full Extension Lock Only
- Cylinder Material : Steel
- End Connector Material : Nylon, Steel
- End Connector : Ball & Socket Joint
- Ext***ed Length : 364mm
- Stroke Length : 150mm
- Rod Diameter : 18mm
- Piston Diameter : 8mm
- Maximum Force : 650N
- Minimum Force : 100N
- CODE No.:202-2490
