Electronic/Electrical Parts and Controll Equipments

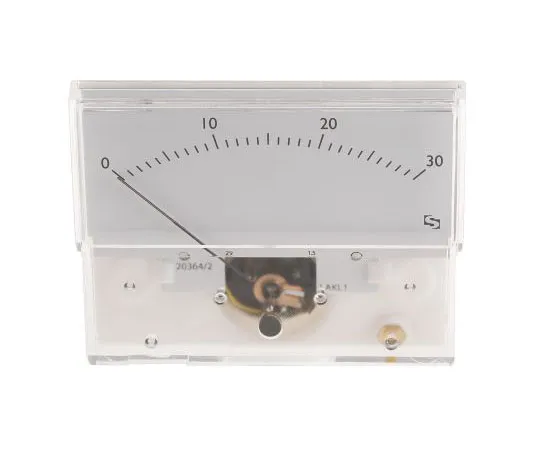

63-7417-93 Sifam Tinsley Analogue Panel Ammeter 100μA DC, 32.3mm x 73.7mm, ±1.5 % Moving Coil IS 11002
model:
63-7417-93
brand:
Sifam Tinsley
Product Description
Product Model: 63-7417-93Product Brand: Sifam Tinsley F […]
Contact Us
Product Details
Product Model: 63-7417-93
Product Brand: Sifam Tinsley
Features
- Presentor Range DC Meters. Electrical connections via 6mm tag terminals Accuracy classes BS89; IEC51 and EN60051 Operating temperature range –25 to +55°C Front mounting panel cut-out 27mm diameter in maximum panel thickness of 4mm Rear mounting panel cut-outs (with bezel) in a maximum panel thickness of 6mm Fixing stud sizes: M2 x 10.0mm (for 43.9 x37.9mm), M2.5 x 10.0mm (for other sizes)
Spec
- Quantity:1piece
- Maximum Value : 100µA
- Current Type : DC
- Moving Element : Moving Coil
- Cutout Height : 32.3mm
- Cutout Width : 73.7mm
- Depth : 30.5mm
- Meter Accuracy : ±1.5 %
- Minimum Temperature : -25°C
- Maximum Temperature : +55°C
- CODE No.:196-8389
