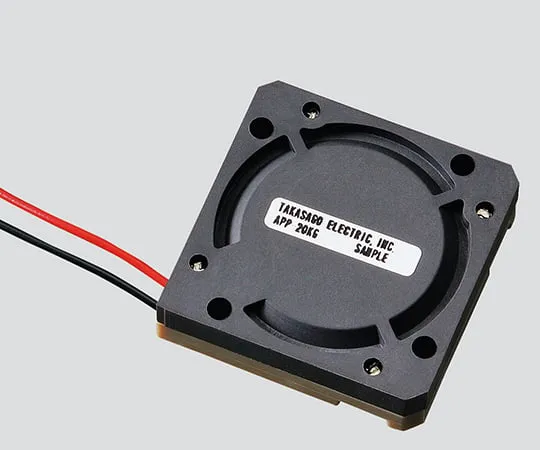

3-5892-01 High Corrosion Resistant Piezoelectric Micropump APP-20KG
Product Description
Product Model: 3-5892-01Product Brand: Takasago Electri […]
Contact Us
Product Details
Product Model: 3-5892-01
Product Brand: Takasago Electric, Inc.
Features
- Capable of flow rate control by drive voltage or frequency.
- Allows for self-priming, requiring no priming water.
Spec
- Model number: APP-20 KG (body)
- Standard flow rate (mL/min): 15
- Pump type: Piezoelectric diaphragm type
- Standard pump pressure: 25 kPa
- Suction load pressure: -1.0 kPa(Typ.)
- Drive voltage: 60 - 250Vp-p
- Drive frequency: 10 - 60Hz
- Operation temperature: -5 - 50℃
- Wetted material: PTFE, PEEK, perfluoro elastomer
- Input and output pipe: φ1.8-φ2.8-L5.0mm
- Size: 33 x 33 x 9mm
- Weight: 17g
- Accessories: MPC-200A/AC adapter
