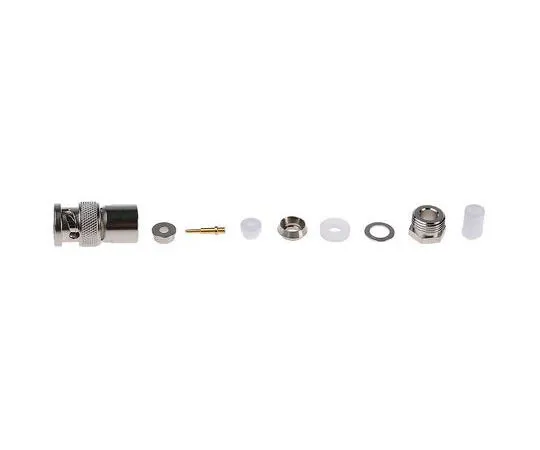

63-7416-58 Telegartner Straight 50Ω Cable Mount BNC Connector, Plug, Nickel, Clamp Termination, RG58 C/U J01000B0608
Product Description
Product Model: 63-7416-58Product Brand: Telegartner Fea […]
Contact Us
Product Details
Product Model: 63-7416-58
Product Brand: Telegartner
Features
- Telegärtner 50 Ohm BNC RF Coaxial Plug Connectors with Pressure Sleeve. 50 Ohm BNC RF coaxial crimp plug connectors with bayonet coupling, cable clamp termination and pressure sleeve. These 50 Ohm BNC straight RF coax cable plugs have a PTFE insulator, nickel plated body, gold plated centre contact and are for *** with various RF coaxial cable types.
Spec
- Quantity:1piece
- G***er : Male
- Mounting Type : Cable Mount
- Impedance : 50Ω
- Termination Method : Clamp
- Body Orientation : Straight
- Cable Type : RG58 C/U
- Bulkhead : No
- Operating Frequency : 0 → 4GHz
- Body Plating : Nickel
- Maximum Operating Temperature : +165°C
- Contact Material : Beryllium Copper
- Contact Plating : Gold
- CODE No.:193-4128
