63-7416-22 3M Black Electrical Tape, 25mm x 7m SCOTCH 23 7X25
Electronic/Electrical Parts and Controll Equipments

63-7416-22 3M Black Electrical Tape, 25mm x 7m SCOTCH 23 7X25

model: 63-7416-22
brand: 3M Company

Product Description

Product Model: 63-7416-22Product Brand: 3M Company Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7416-22
Product Brand: 3M Company

Features

  • Scotch® Rubber Splicing Tape 23. Scotch® Rubber Splicing Tape 23 is a highly conformable 0.76 mm thick, self-amalgamating EPR (Ethylene Propylene Rubber) base for rubber splicing. It is designed to splice and terminate cables with overload temperatures of 266 degrees F(130 degree C), due to dissipating heat affectively. The snakeskin liner is easily removed when applying the tape, to allow the self-fusing ethylene propylene rubber, high insulating voltage tape. Application. Use Scotch® Rubber Splicing Tape 23 for low or high voltage applications and joints up to 69 kV. This 0.76 mm thick, highly conformable, self-amalgamating EPR (Ethylene Propylene Rubber) based tape can be stretched up to 100% for void-free, moisture-resistant insulation. It ‘s non-vulcanising and shelf-stable with excellent electrical properties. Featuring a special polyester liner that will not stick when unwinding, this tape is ideal for moisture sealing electrical connections. Features and Benefits. Features a special polyester liner that will not stick when unwinding. Stretch up to 100% for void-free, moisture-resistant insulation. Non-vulcanising and shelf stable. Highly conformable, self-amalgamating EPR (Ethylene Propylene Rubber) based tape. Ideal for moisture sealing electrical connections. Black. FAQ's. Can wires with exposed cables be made safe with this tape?. Yes, the electrical tape is designed for this purpose, but would recomm***ed seek professional advice to deal with exposed wires.

Spec

  • Quantity:1piece
  • Colour : Black
  • Backing Material : EPDM
  • Width : 25mm
  • Length : 7m
  • Thickness : 0.76mm
  • Minimum Operating Temperature : -29°C
  • Maximum Operating Temperature : +130°C
  • Adhesive Material : Rubber
  • Trade Name : Scotch 23
  • Elongation at Break : 1000%
  • Tensile Strength : 14N/cm
  • Breakdown Voltage : 31500V
  • CODE No.:192-1611

Related product recommendations

You may also be interested in the following products

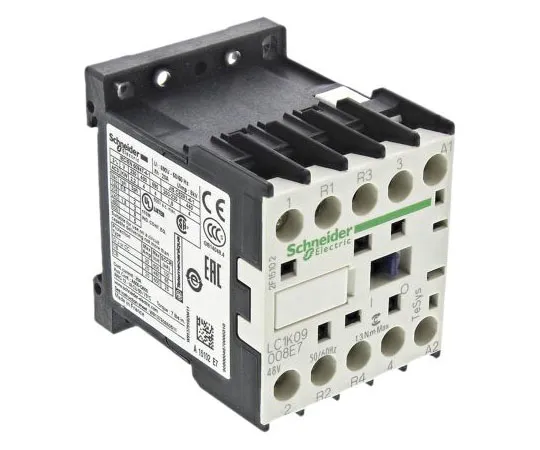

63-7631-34 Schneider Electric 4 Pole Contactor, 9 A, 48 V ac Coil, TeSys K, 2NO/2NC, 4 kW LC1K09008E7
