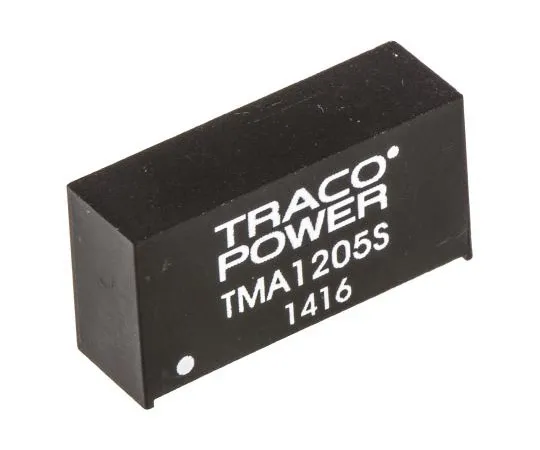

63-7415-64 TRACOPOWER TMA 1W Isolated DC-DC Converter Through Hole, Voltage in 10.8 → 13.2 V dc, Voltage out 5V dc TMA 1205S
Product Description
Product Model: 63-7415-64Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-7415-64
Product Brand: TRACOPOWER
Features
- 3. Traco 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - TMA Series. The Traco Power TMA series is a range of miniature isolated, 1 Watt, DC/DC converters in a SIP package. The SMD technology of these isolated converters makes it possible to offer a product with high performance at low cost. The TME DC-DC converters require only 1.2 cm2 board space and are the perfect solution for space critical applications for board level power distribution. Single-in-line (SIP) package Single and dual output models I/O isolation 1 ‘000 VDC High efficiency up to 81% Operating temperature range –40°C to +85°C Industry standard pinout 100% Burn-in (8 h) Lead free design, RoHS compliant
Spec
- Quantity:1piece
- Output Voltage : 5V dc
- Input Voltage Range : 10.8 → 13.2 V dc
- Input Voltage Nominal : 12 V dc
- Isolation Voltage : 1000V dc
- Power Rating : 1W
- Output Current : 200mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Efficiency : 73%
- Package : SIP 6
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Depth : 10.2mm
- CODE No.:191-4972
