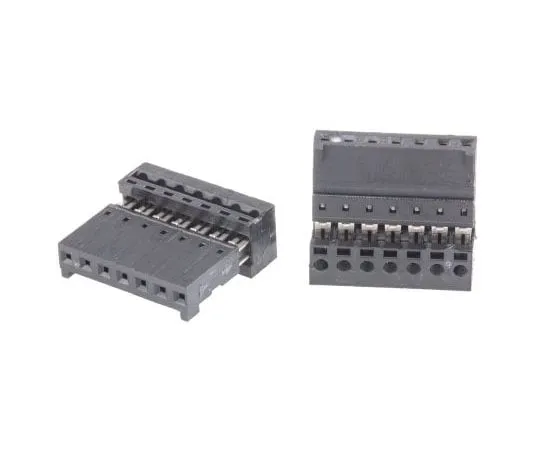

63-7413-98 Stelvio Kontek 7-Way IDC Connector Socket for Cable Mount, 1-Row 661007151922
model:
63-7413-98
brand:
Stelvio Kontek
Product Description
Product Model: 63-7413-98Product Brand: Stelvio Kontek […]
Contact Us
Product Details
Product Model: 63-7413-98
Product Brand: Stelvio Kontek
Features
- HE14, IEC 603-8. Autocom HE14 90° IDC Connectors. Single row IDC connectors with right angle exit for flat or single wire cables No special prepration of cables required Can be assembled by hand Double blade contacts Rated at 3A/1000V Flammabilty rating UL94 V-0
Spec
- Quantity:1bag(5pieces)
- Number of Contacts : 7
- Number of Rows : 1
- G***er : Female
- Pitch : 2.54mm
- Mounting Type : Cable Mount
- Body Orientation : Right Angle
- Termination Method : IDT
- Current Rating : 3A
- Contact Plating : Tin
- Series : Autocom
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- Voltage Rating : 500 V ac
- Contact Material : Phosphor Bronze
- CODE No.:189-9491
