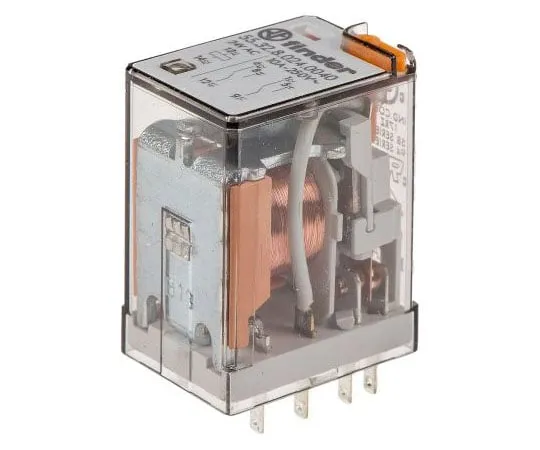

63-7413-50 Finder55 Series DPDT Non-Latching Relay Plug In, 24V ac Coil, 20A 55.32.8.024.0040
Product Description
Product Model: 63-7413-50Product Brand: Finder Features […]
Contact Us
Product Details
Product Model: 63-7413-50
Product Brand: Finder
Features
- UL; C-UL recognised; VDE. 55 Series Relay. The Finder 55 series miniature relays for general purpose applications. Features ; Benefits. Test button and mechanical indicator. Ac/dc coils. Cadmium free contacts. Dimensions: H 39.5, W 20.6, D 27.5. Mechanical life: AC; 2 x 10 ;sup>7 ;/sup>, DC; 5 x 10 ;sup>7 ;/sup>. Operating temperature range -40 to +85°C. Wide range of accessories also available. Silver-Nickel Cadmium free contacts. Dust-proof RT I standard protection rating. For *** with 94 series sockets
Spec
- Quantity:1piece
- Coil Voltage : 24V ac
- Coil Power : 1.5W
- Coil Resistance : 190 Ω
- Isolation Coil To Contact : 4kV
- Contact Configuration : DPDT
- Mounting Type : Plug In
- Switching Current : 20A
- Terminal Type : Quick Connect
- Number of Poles : 2
- Maximum Switching Voltage AC : 400V ac
- Height : 37.2mm
- CODE No.:189-3184
