Features

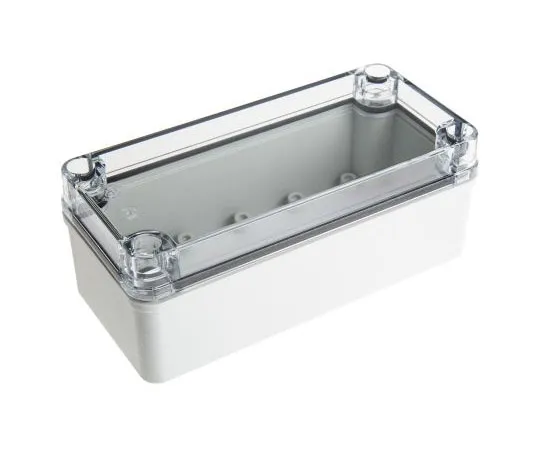

• * Depending on orientation of box. Piccolo Polycarbonate Enclosures. Piccolo polycarbonate enclosure boxes are versatile and suitable for mounting in upright positions. The enclosures are designed for use with push-buttons, junction boxes, pilot lamps, terminal blocks, motor starters and various other electronic devices. Excellent for mounting and protecting process control sensors and switches. The enclosure boxes are light grey RAL 7035 with an IP rating IP67. Features and Benefits:. Shock resistant Base with screws to attach the mounting plate or DIN rail inside the box Lid with PUR gasket and polyamide lid screws External Height dimension includes lid thickness. Installation Position:. Upright – on a wall, pole or frame. Ratings:. Ingress protection EN 60529 IP66 / IP67. Impact resistance EN 62262 IK08. Totally electrically insulated. Halogen free DIN / VDE 0472, Part 815 – 1. UV resistance UL 508. Flammability rating UL 746C 5V. Glow wire test (IEC 695-2-1) °C – 960. NEMA 1, 4X, 6, 12, 13. Material:. Polycarbonate enclosure box. Polyamide screws. Polyurethane gasket. Temperature Ranges:. Short term -40°C to 120°C. Continuous -40°C to 80°C. Transparent lids are available for the following stock numbers: 1195531, 1195553, 1195575, 1195604, 1882241, 1882263, 1882285
