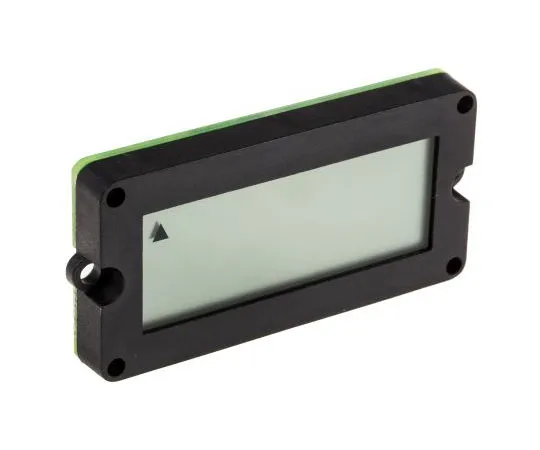

63-7412-14 Lascar DDM 4 7-Segment LCD Display Grey, 1 Row by 4 Characters, Transflective DDM 4
Product Description
Product Model: 63-7412-14Product Brand: Lascar Features […]
Contact Us
Product Details
Product Model: 63-7412-14
Product Brand: Lascar
Features
- 12.7mm LCD 4-digit Data Display. Serial data entry and latching via three control lines (data in, clock and load data) CMOS and TTL compatible Can be cascaded in multi-display applications Easily interfaced with PIC micro-controllers. All LCD segments individually addressable Supply current: 40μA @ 5Vdc Backlight current: 50mA at 5Vdc Max clock rate: 1.5Mhz (50% duty cycle)
Spec
- Quantity:1piece
- Display Type : 7-Segment
- Character Matrix : 1 Row by 4 Characters
- Character Rows : 1
- Character Height : 12.7mm
- Viewing Area Width : 47mm
- External Depth : 13.7mm
- Backlight Type : LED
- External Height : 34.5mm
- Display Mode : Transflective
- Minimum Operating Temperature : 0°C
- Operating Temperature Range : 0 → +50°C
- CODE No.:186-2679
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4750-61 RS PRO Red Insulated Crimp Receptacle, 2.8 x 0.5mm, 0.5mm² to 1.5mm², 22AWG to 16AWG, Tin Plated 267-4259
model: 63-4750-61
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-5135-94 Marquardt Single Pole Single Throw (SPST) Push Button Switch, IP 40, IP 54, 16 (Dia.)mm, Panel Mount 05000.0212-02
model: 63-5135-94
brand: Marquardt
Electronic/Electrical Parts and Controll Equipments

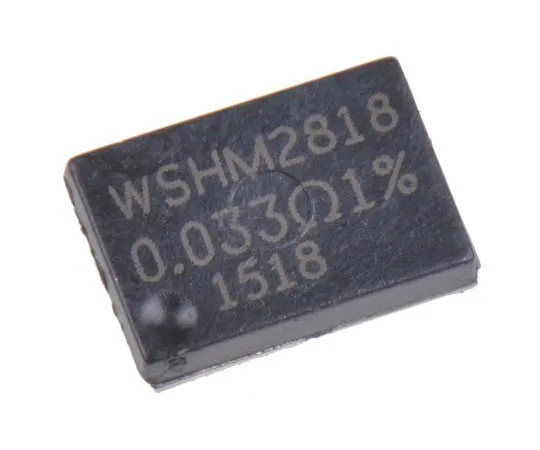

63-8048-66 33mΩ NiCr Alloy Current Sensing Surface Mount Fixed Resistor ±1% 7W - WSHM2818R0330FEB WSHM2818R0330FEB
