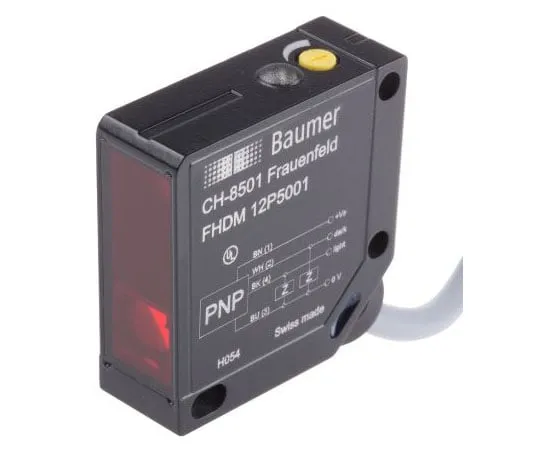

63-7411-32 Baumer FHDM 12P Photoelectric Sensor Diff*** 15 → 300 mm Detection Range PNP FHDM 12P5001
Product Description
Product Model: 63-7411-32Product Brand: Baumer Features […]
Contact Us
Product Details
Product Model: 63-7411-32
Product Brand: Baumer
Features
- Miniature Diff***, Background Suppressed. N/O + N/C output configurations Sealed to IP67. Supply voltage 10 to 30Vdc Switching frequency 500Hz Pulsed visible red beam to allow for simple installation Response time 1ms Short circuit and reverse polarity protection Status LEDs Adjustable sensitivity range Operating Temperature Range -25 to +65°C
Spec
- Quantity:1piece
- Sensor Style : Block
- Detection Type : Diff***
- Detection Range : 15 → 300 mm
- Output Type : PNP
- Electrical Connection : 4-Wire Cable 2m
- Maximum DC Voltage : 30V
- Light Source : LED
- IP Rating : IP67
- Maximum Current : 100 mA
- Response Time : <1 ms
- Housing Material : Die Cast Zinc
- Maximum Operating Temperature : +65°C
- CODE No.:185-2234
