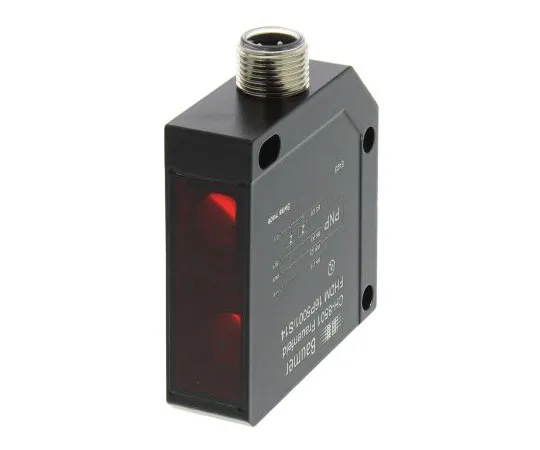

63-7411-31 Baumer FHDM 16P Photoelectric Sensor Diff*** 20 → 450 mm Detection Range PNP FHDM 16P5001/S14
Product Description
Product Model: 63-7411-31Product Brand: Baumer Features […]
Contact Us
Product Details
Product Model: 63-7411-31
Product Brand: Baumer
Features
- Miniature Diff***, Background Suppressed. N/O + N/C output configurations Sealed to IP67. Supply voltage 10 to 30Vdc Switching frequency 500Hz Pulsed visible red beam to allow for simple installation Response time 1ms Short circuit and reverse polarity protection Status LEDs Adjustable sensitivity range Operating Temperature Range -25 to +65°C
Spec
- Quantity:1piece
- Sensor Style : Block
- Detection Type : Diff***
- Detection Range : 20 → 450 mm
- Output Type : PNP
- Electrical Connection : 4-Pin M12 Connector
- Maximum DC Voltage : 30V
- Light Source : LED
- IP Rating : IP67
- Maximum Current : 200 mA
- Response Time : <1 ms
- Housing Material : Die Cast Zinc
- Maximum Operating Temperature : +65°C
- CODE No.:185-2212
