Electronic/Electrical Parts and Controll Equipments

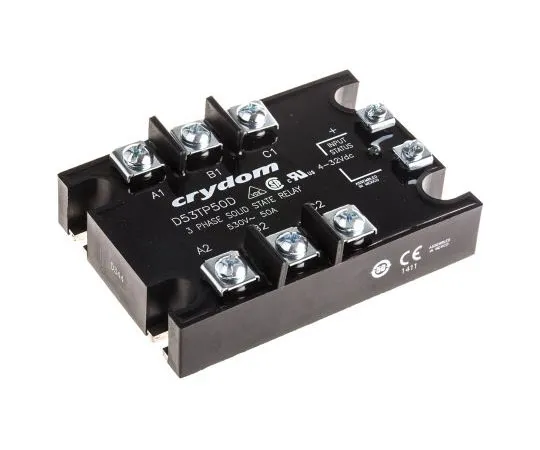

63-7411-05 Sensata / Crydom 50 A rms Solid State Relay, Zero Cross, Panel Mount, SCR, 530 V rms Maximum Load D53TP50D
model:
63-7411-05
brand:
Sensata / Crydom
Product Description
Product Model: 63-7411-05Product Brand: Sensata / Crydo […]
Contact Us
Product Details
Product Model: 63-7411-05
Product Brand: Sensata / Crydom
Features
- UL, CSA, VDE. Derating will limit the maximum load current at temperatures above 25 °C. Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet. 53TP 25-50A, 530Vac, 3 Phase SSRs. High reliability SCR output LED status indicator Direct load switching of motors, heaters and transformers Dimensions:H30 x W73.4 x D103.8mm Terminal Type Screw; Saddle Clamp 8pF Input-Output Capacitance
Spec
- Quantity:1piece
- Minimum Load Current : 0.05 A
- Maximum Load Current : 50 A rms
- Mounting Type : Panel Mount
- Maximum Load Voltage : 530 V rms
- Minimum Control Voltage : 4 V
- Maximum Control Voltage : 32 V
- Switching Type : Zero Cross
- Output Device : SCR
- Maximum Turn On Time : 1/2 cycle
- Dimensions : 103.8 x 73.4 x 30mm
- Maximum Operating Temperature : +80°C
- CODE No.:184-5999
